UBIQUITI ES-16-150W EDGE SWITCH 16

Managed PoE+ Gigabit Switch with SFP

Available with 24 or 48 RJ45 Gigabit ports, the EdgeSwitch™ delivers robust performance, PoE+ support and intelligent switching for growing networks.

(16) Gigabit RJ45 Ports • (2) SFP Ports • (1) Serial Console Port • Non-Blocking Throughput: 18 Gbps • Switching Capacity: 36 Gbps • Forwarding Rate: 26.78 Mpps • Maximum Power Consumption: 150W • Supports POE+ IEEE 802.3at/af and 24V Passive PoE • Rackmountable with Rack-Mount Brackets (Included)

Powerful Enterprise Switch Models

The EdgeSwitch™ delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.

Enterprise-Class Features

The EdgeSwitch™ supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Optical Fiber Backhaul

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

Convenient PoE+ Support

The EdgeSwitch™ features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

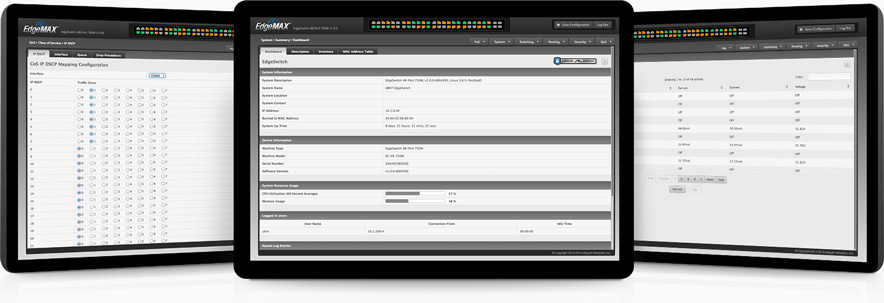

Advanced UI

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

Total Non-Blocking Throughput: 18Gbps

Gigabit RJ45 Ports: 16

SFP+ Ports: N/A

SFP Ports: 2

Max. Power Consumption: 150W
