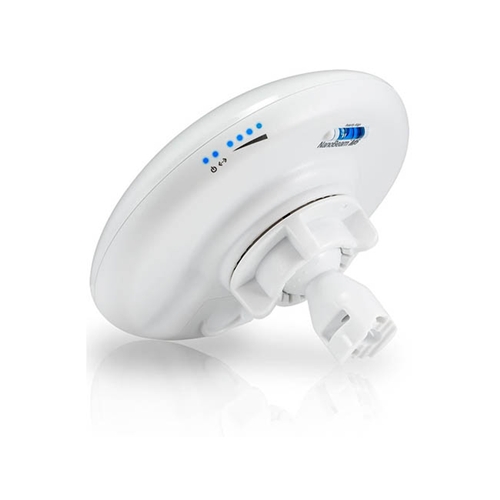

UBIQUITI NBEM516 NANOBEAM AIRMAX 5GHZ 16DB
High-Performance airMAX® Bridge
Incorporating innovative industrial design with advanced technology, the NanoBeam®M is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.
Plug and Play Installation
The NanoBeam® mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Incredible Antenna “Beam” Performance
The form factor of the NanoBeam® features the highest gain for its size. The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Wall Mount Kit
Use the optional NBE-WMK Wall Mount Kit for enhanced stability when mounting the NanoBeam on a wall.
Technical Information
|
| Wireless LAN Standard: |
IEEE 802.11a |
| Frequency Band: |
5 GHz |
| Outdoor Antenna Range: |
6.2 Mile |
| Wireless Transmission Speed: |
150 Mbit/s |
Interfaces/Ports
|
| Ethernet Port: |
Yes |
| Fast Ethernet Port: |
Yes |
| Gigabit Ethernet Port: |
No |
| 10Gigabit Ethernet Port: |
No |
| Number of Network (RJ-45) Ports: |
1 |
| PoE (RJ-45) Port: |
No |
| VGA: |
No |
| HDMI: |
No |
| USB: |
No |
| Powerline: |
No |
| Management Port: |
No |
Power Description
|
| Power Source: |
PoE |
Physical Characteristics
|
| Form Factor: |
- Wall Mountable
- Pole-mountable
|
| Height: |
5.5" |
| Width: |
2.1" |
| Diameter: |
5.5" |
| Weight (Approximate): |
11.36 oz |
Miscellaneous
|
| Package Contents: |
- High-Performance airMAX Bridge
- Pole-Mount Kit
|
| Green Compliant: |
Yes |
| Green Compliance Certificate/Authority: |
|
