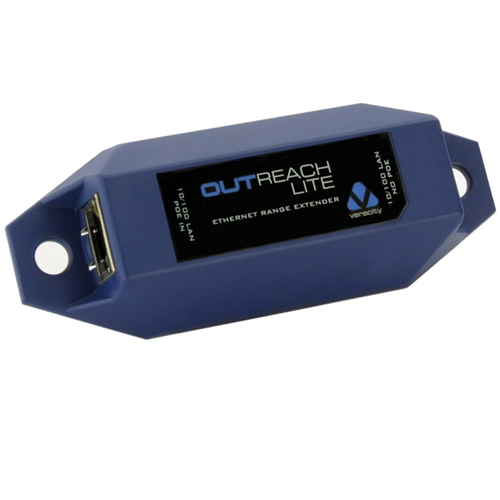

Veracity VOR-ORL Outreach Lite PoE-Powered LAN Repeater

Ethernet Extender for non-PoE connections

OUTREACH Lite provides a simple way to double the length of a 10/100 Ethernet connection. No configuration is required, it does not require a local power supply, and it does not restrict the throughput of the network link at all.

Compact and wall-mountable, OUTREACH Lite takes its power from the network cable using the universal 802.3af Power over Ethernet (PoE) standard. Network connections can easily be upgraded to PoE compatibility if it is not already available using a simple injector.

Range: At least 200m using a single OUTREACH Lite. Up to 2200m when used with combinations of OUTSOURCE and OUTREACH Max Network :10BASE-T / 100BASE-TX, full/half duplex (auto-negotiated) Patch or crossover cables PoE in: IEEE 802.3af Class 2 powered device Device power 1.3 watts PoE out: Not supported in OUTREACH Lite Dimensions: L 105mm x W 40mm x H 22mm
