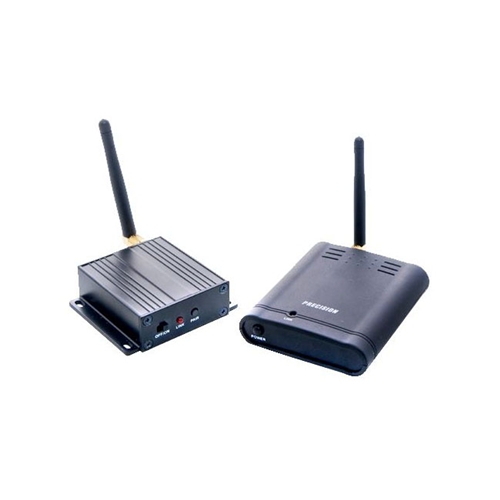

DWLKIT

2.4GHz Digital Wireless System, Up to 700ft, Video Audio Support, Push button pairing

Features

TRANSMITTER:
• Transmit Frequency 2.400GHz – 2.4835GHz
• Image Processor: MPEG 4 encode/decode
• Transmit Power (max): 1W/FCC or 100mW/CE
• Modulation: 16QAM/QPSK/BPSK
• Video Bit Rate: up to 12 Mbps
• Antenna: Omni-directional antenna
• Video Output Level: 1+/-0.2V p-p @ 75 ohm
• Audio Output Level: 1+/-0.2V p-p @ 600 ohm
• AV in port: 3.5mm stereo jack
• Monitor port: 3.5mm stereo jack
• Dimensions: 63 x 56 x 20 mm
• Weight: 75g
• Power Supply: 12VDC, 1A

RECEIVER:
• Receiver Frequency: 2.400GHz – 2.4835GHz
• Receiver Sensitivity: -80dBm min.
• Antenna: Omni-directional antenna
• Image Processor: MPEG 4 encode/decode
• Video Output Level: 1+/-0.2V p-p @ 75 ohm
• Audio Output Level: 1+/-0.2V p-p @ 600 ohm
• AV OUT Port: 3.5mm stereo jack
• REC. Port: 3.5mm stereo jack
• Dimensions: 90 x 75 x 20 mm
• Weight: 120g
• Power Supply: 12VDC, 1A

SYSTEM:
• Operational Range: up to 700 feet clear-line-of-sight
• Operating Temperature: 10C – 50C (14F – 122F)
