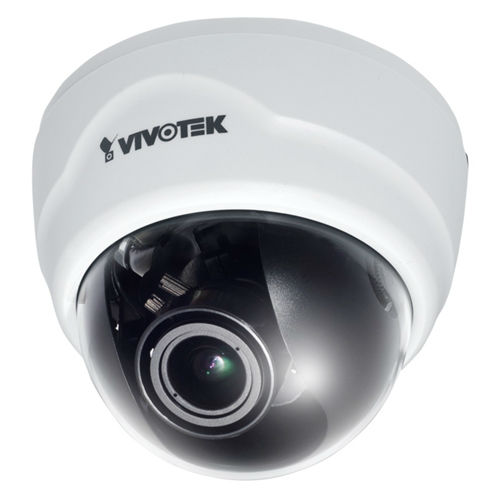

1MP Vari-focal Lens Compact Design Network Camera FD8131
VIVOTEK FD8131 are easy-to-use fixed dome network cameras specifically designed for indoor security applications. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps, users need to look no further for an all-in-one camera capable of capturing high quality HD video.
With the vari-focal lens, the FD8131 provide users the freedom to adjust the field of view in accordance with their applications. Also included are a number of advanced features standard on VIVOTEK cameras, including tamper detection, MicroSD/SDHC card slot, 802.3af Compliant PoE, and VIVOTEK's 32-channel recording software. With all of these capabilities, the FD8131 present the best value in IP surveillance for indoor applications.
Features
- 1-Megapixel CMOS Sensor
- 3 ~ 12 mm Vari-focal Lens
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC Card Slot for On-board Storage
- 3-axis Mechanical Design for Ceiling and Wall Mount Installation
- Easy and Flexible Installation
- Compact, Elegant Design
System Information
| CPU |
Multimedia SoC (System-on-Chip) |
| Flash |
128 MB |
| RAM |
128 MB |
|
Camera Features
| Image sensor |
1/4" CMOS |
| Maximum Resolution |
1280x800 |
| Lens Type |
Vari-focal |
| Focal Length |
f = 3 ~ 12 mm |
| Aperture |
1.4 ( wide ), F 2.0 ( tele ) |
| Field of View |
- 61.34° ~ 24.13° (horizontal)
- 37.56° ~ 15.08° (vertical)
- 72.85° ~ 28.18° (diagonal)
|
| Shutter Time |
1/5 sec. to 1/32,000 sec. |
| Minimum Illumination |
0.5 Lux @ F1.4, 50 IRE |
| Pan / Tilt / Zoom |
- ePTZ
- 16x digital zoom ( 4x on IE plug-in, 4x built-in )
|
| On-board Storage |
MicroSD/SDHC card slot |
|
Video
| Compression |
H.264, MPEG-4 & MJPEG |
| Maximum Frame Rate |
H.264: 30 fps at 1280x800
MPEG-4: 30 fps at 1280x800
MJPEG: 30 fps at 1280x800 |
| Maximum Streams |
4 simultaneous streams |
| S/N Ratio |
Above 53 dB |
| Dynamic Range |
Above 40 dB |
| Video Streaming |
Adjustable resolution, quality and bit rate
Configurable video cropping for bandwidth saving |
| Image Settings |
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure control
BLC (Backlight compensation)
Supports privacy masks
Scheduled profile settings |
|
Network
| Users |
Live viewing for up to 10 clients |
| Protocols |
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
| Interface |
10 Base-T / 100BaseTX Ethernet (RJ-45) |
| ONVIF |
Supported, specification available at www.onvif.org |
|
Intelligent Video
| Video Motion Detection |
Triple-window video motion detection |
|
Alarm and Event
| Alarm Triggers |
Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events |
Event notification using HTTP, SMTP, FTP, NAS server
File upload via HTTP, SMTP, FTP and NAS server |
|
General
| Connectors |
RJ-45 cable connector for Network/PoE connection
DC 12V Power input
Digital input * 1
MicroSD/SDHC card slot |
| LED Indicator |
System power and status indicator |
| Power input |
12V DC
802.3af Power-over-Ethernet (Class 1) |
| Power consumption |
Max. 3.84 W |
| Dimensions |
Ø: 109.5 mm x 90.5 mm |
| Weight |
Net: 500 g |
| Safety Certifications |
CE C-Tick FCC ( Class A ) LVD VCCI |
| Operating Temperature |
- Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
- Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
|
| Warranty |
24 Months |
|
System Requirements
| Operating System |
Microsoft Windows 7 / Vista / XP / 2000 |
| Browser |
Mozilla Firefox 7~10 ( Streaming only )
Internet Explorer 7.x or 8.x |
| Other Players |
VLC: 1.1.11 or above
QuickTime: 7 or above |
|
