2MP PIR Focus Assist Hassle-free Installation WDR Enhanced Dome Network Camera FD8162
VIVOTEK FD8162 is an easy-to-use fixed dome network camera, featuring 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. As a true day/night camera, the FD8162 features a removable IR-cut filter, maintaining clear images 24 hours a day. With WDR enhancement, users can identify image details in extremely bright or dark environments. It is especially suitable for monitoring wide open indoor environments such as building entrances, airports or applications requiring accurate identification.
With high-performance H.264/MPEG-4/MJPEG compression technology, the FD8162 offers extra-smooth HD video quality. For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. To resolve this, the FD8162 is equipped with a focus assist button to allow users to precisely adjust the camera focus. Furthermore, the unique design of the four-step mount facilitates easy usage of the FD8162, offering more flexible, hassle-free installation and maintenance.
Together with a PIR sensor for thermal detection, 802.3af Compliant PoE, tamper detection, MicroSD/SDHC card for on-board storage, video cropping and e-PTZ functionality, the FD8162 is indisputably the top choice for reliable and high performance surveillance.
Features
- 2-Megapixel CMOS Sensor
- Up to 30 fps @ 1080p Full HD

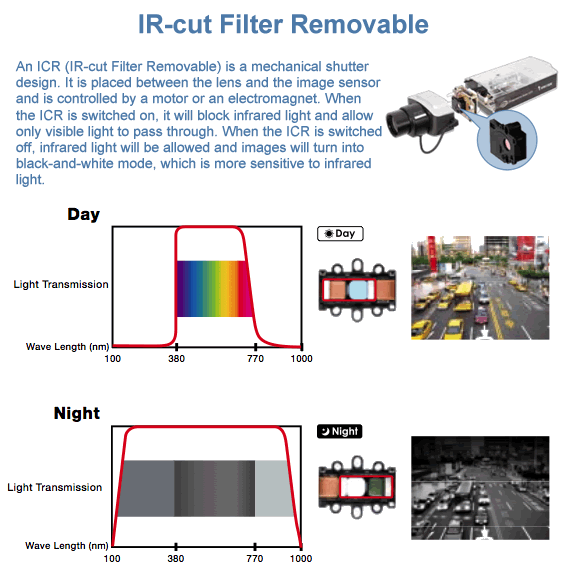

- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, effective up to 15 Meters

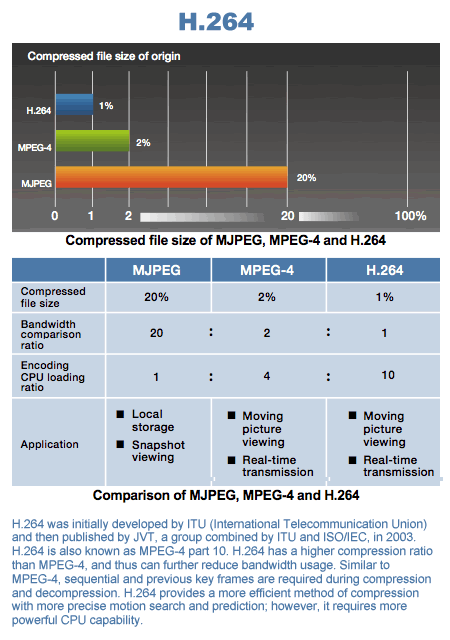

- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)

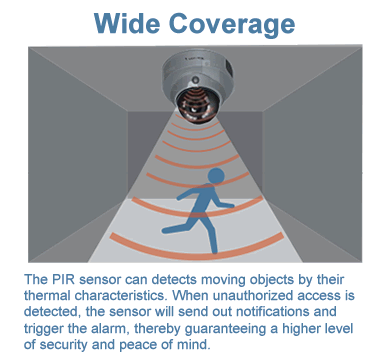

- Built-in PIR Sensor for Human Detection
- WDR Enhancement for Unparalleled Visibility in Extremely Bright or Dark Environments

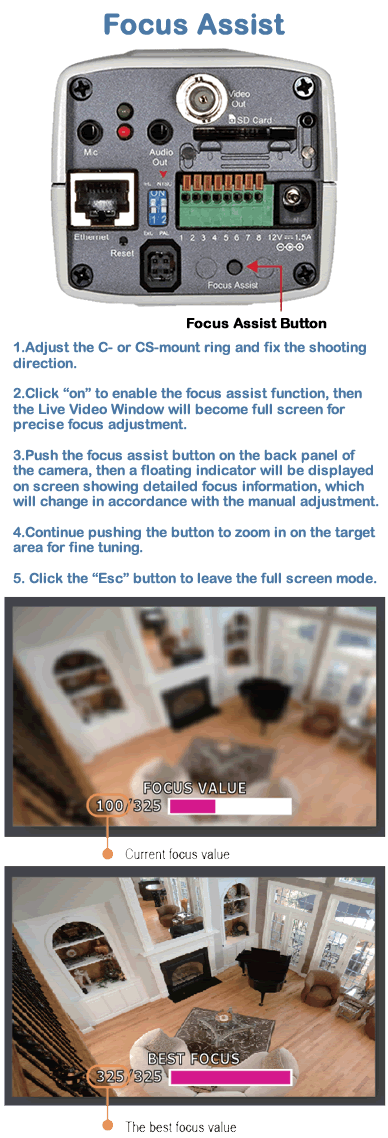

- Built-in Focus Assist Button for Precise Focus Adjustment
- Hassle-free Installation

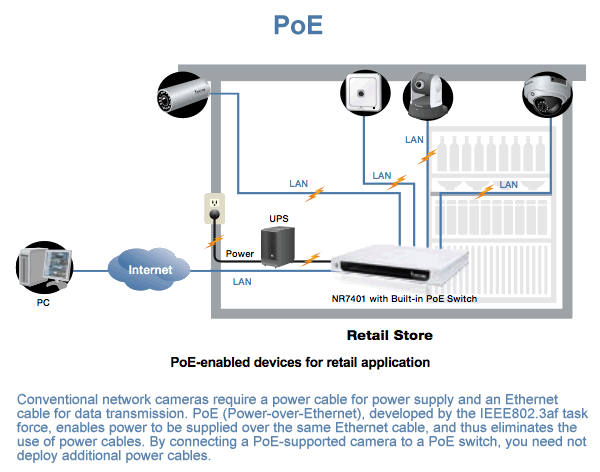

- Built-in 802.3af Compliant PoE

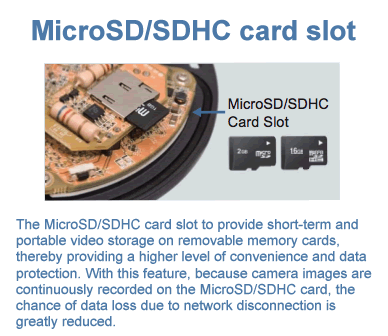

- Built-in MicroSD/SDHC Card Slot for On-board Storage
| Lens |
f=3 ~ 9 mm
F 1.2 (wide)
F 2.1 (tele)
Auto iris
Board lens
Vari-focal
Removable IR-cut filter for day & night function |
| Field of View |
31.7° ~ 93.0° (horizontal)
23.8° ~ 68.4° (vertical)
39.6° ~ 118.9° (diagonal) |
| Shutter Time |
1/5 ~ 1/32,000 sec. |
| Image sensor |
1/2.7" progressive scan CMOS in 1920x1080 Resolution |
| Minimum Illumination |
0.08 Lux @ F1.2 ( Color )
0.001 Lux @ F1.2 ( B/W ) |
| IR Illuminators |
IR LED*18
Built-in IR illuminators, Effective up to 15 meters |
| Video |
Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports video cropping for bandwidth efficiency
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps at 1920x1080
MPEG-4: Up to 30 fps at 1920x1080
MJPEG: Up to 30 fps at 1920x1080
Interface:
Audio/Video output
NTSC/PAL video output switch
Focus Assist |
| Image Settings |
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure control
AGC AWB AES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
WDR enhanced |
| Audio |
Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, μ-Law or A-Law
Interface:
Built-in microphone
External microphone input
Audio output
External/Internal microphone switch
Supports two-way audio
Supports audio mute |
| Networking |
10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
| |
Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, FTP
Local recording of MP4 files

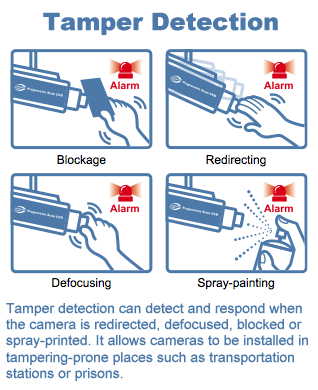

Tamper Detection
PIR (Passive Infrared Sensor) for human detection |
| On-board Storage |
MicroSD/SDHC card slot
Stores snapshots and video clips |
| Security |
Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection |
| Users |
Live viewing for up to 10 clients |
| Dimensions |
Ø: 157mm x 110 mm |
| Weight |
Net: 765 g |
| LED Indicator |
System power and status indicator |
| Power |
12V DC
24V AC
Power consumption: Max. 5.3 W
802.3af Power-over-Ethernet (Class 3) |
| Approvals |
CE C-Tick FCC LVD VCCI UL |
| Operating Environments |
Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Humidity: 90% RH |
| Viewing System Requirements |
OS: Microsoft Windows 7 / Vista / XP / 2000
Browser: Mozilla Firefox
Browser: Internet Explorer 7.x or above
VLC: 10.5 or above
QuickTime: 6.5 or above
Cell phone: 3GPP player
Real Player 10.5 or above |
| Installation Management and Maintenance |
Hassle-free Installation
Camera angle adjustment:
Pan range: 350°
Tilt range: 65°
Rotate range: 350°
Installation Wizard 2
ST7501 32-channel recording software
Supports firmware upgrade |
| Applications |
SDK available for application development and system integration |
| Warranty |
36 Months |
