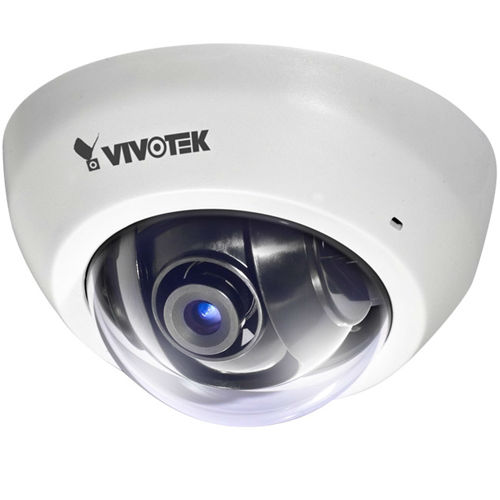

"Vivotek FD8166-F2-W Ultra-Mini 2 Mp Fixed Dome Network Camera (NTSC, 2.8mm Lens, White)
The white FD8166-F2-W Ultra-Mini 2 Mp Fixed Dome Network Camera (NTSC, 2.8mm Lens) from Vivotekenables a viewing resolution of 1920 x 1080 at 15 fps, and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth.
With MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications. Designed with a focal length of 2.8mm, the camera can be used in various environments, including but not limited to offices, elevators, campus, chain stores, boutique stores and health care facilities. With a diameter of only 3.5"" (90.0mm), this camera is well suited for indoor surveillance.
The camera comes along with the 32-channel recording software for easy monitoring. With installation as easy as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation effortless.
- 2 Mp CMOS sensor
- Lens with a focal length of 2.8mm
- Viewing resolution of 1920 x 1080 at 15 fps
- Real-time H.264, MJPEG compression (dual codec)
- Built-in IEEE 802.3af compliant PoE
- Built-in microSD/SDHC card slot for on-board storage
- Compact and stylish design
- Easy installation
- Adjustable resolution, quality and bit rate
- Configurable video cropping for bandwidth saving
- Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror
- Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
- Scheduled profile settings
| System |
| CPU |
Multimedia SoC (System-on-Chip) |
| Flash |
16 MB |
| RAM |
256 MB |
| Camera |
| Image Sensor |
1/2.7"" Progressive CMOS |
| Maximum Resolution |
1920 x 1080 |
| Lens Type |
Fixed-focal |
| Focal Length |
f = 2.8 mm |
| Aperture |
F2.0 |
| Field of View |
121° (horizontal)
68° (vertical)
142° (diagonal) |
| Shutter Time |
1/5 to 1/32,000 seconds |
| Minimum Illumination |
0.24 lux, 50 IRE |
| Pan Range |
45° |
| Tilt Range |
33 to 90° |
| Pan/Tilt/Zoom |
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage |
microSD/SDHC/SDXC card slot |
| Video |
| Compression |
H.264 & MJPEG |
| Maximum Frame Rate |
H.264
15 fps at 1920 x 1080, 30 fps at 1280 x 720
MJPEG
15 fps at 1920 x 1080, 30 fps at 1280 x 720 |
| Maximum Streams |
2 simultaneous streams |
| S/N Ratio |
Above 53 dB |
| Audio |
| Audio Capability |
Audio input |
| Compression |
G.711 |
| Interface |
Built-in microphone |
| Effective Range |
16.4' (5.0 m) |
| Network |
| Users |
Live viewing for up to 10 clients |
| Protocols |
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface |
10Base-T/100 BaseTX Ethernet (RJ-45) |
| ONVIF |
Supported |
| Video Motion Detection |
Triple-window video motion detection |
| Alarm and Event |
| Alarm Triggers |
Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events |
Event notification using HTTP, SMTP, FTP and NAS server
File upload via HTTP, SMTP, FTP and NAS server |
| System Requirements |
| Operating System |
Microsoft Windows 7/Vista/XP/2000 |
| Web Browser |
Mozilla Firefox 7 to 10 (streaming only), Internet Explorer 7.x or 8.x |
| Player |
VLC: 1.1.11 or above, QuickTime: 7 or above |
| General |
| Connectors |
RJ-45 for Network/PoE connection Digital input |
| LED Indicator |
System power and status indicator |
| Power Input |
IEEE 802.3af PoE Class 1 |
| Power Consumption |
2.9 W Maximum |
| Safety Certification |
CE, LVD, FCC Class B, VCCI, C-Tick |
| Operating Temperature |
32 to 122°F (0 to 50°C) |
| Dimensions (Ø x D) |
3.54 x 1.96"" (90.00 x 50.00 mm) |
| Weight |
5.07 oz (144.0 g) |
