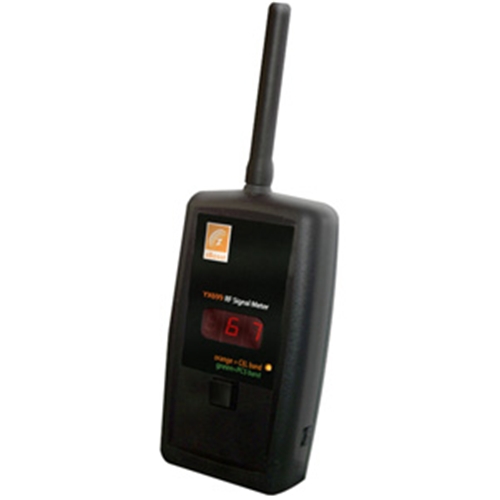

zBoost® RF Signal Meter for Custom Installers

Designed for installers, the zBoost® RF Signal Meter reads the signal level for best placement of
an antenna or aiming of a directional antenna. In addition, it will help the installer identify the
signal strength and variation inside the building to aid in the placement of the internal antenna. It
is designed to operate in both the CELL and PCS bands. The zBoost RF Signal Meter comes with
everything you need – the meter, power supply, cable and antenna.
No set-up, just attach the antenna and plug it in - Instant Signal Reading!

Benefits include:
• Detects best location for the antenna – Reads signal strength
• Identifies peak antenna alignment - Attach to antenna to read
signal strength from directional antenna
• Easy to use – just plug in (or add batteries) and start reading
signals
• Small footprint and lightweight
• Dual-band works with most carriers at both Cellular

PRODUCT SPECIFICATIONS
zBoost Professional Signal Meter - Product Specifications:
Frequency (downlink) 1930 - 1990MHz (1900 MHz) 869 – 894 MHz (800 MHz)
Signal Indicator Display LED: numeric display 0-99 (default) or dBm display -99dBM to -10dBm
Connectors RF SMA (female) – PCS and CELL RF input
DC power – 2.1 mm barrel male connector
Power Source Adapter (included) 3.6VDC
Battery (not included)3 x 1.5VDC - standard AA batteries (8-10 hours)
Base Unit Size: 2”x4”x1”
Operating Conditions 0O to 50OC (32 to 122OF)
Storage Conditions -30O to 125OC (-22 to 257OF)
