Item #: WB800CH1UIPVM8
MSRP: No Retail

WB-800CH1U-IPVM-8 | 1U Integrated Faceplate IP Power Conditioner | 8 Individually Metered and Controlled Outlets


WattBox® 1U Integrated Faceplate IP Power Conditioner | 8 Individually Metered and Controlled Outlets

The WattBox 800 Series 8-Outlet brings the professional-grade benefits of the 800 Series in a dealer-requested 1U form factor. We’ve also added an integrated faceplate with LED indicators and local reset for the entire unit or individual outlets. The 1U rack-mountable chassis helps maximize your rack space, while LED indicators on the integrated faceplate tell you at a glance if the device is connected to the internet, properly grounded, and its safe voltage and surge protection status.


The faceplate also provides both voltage and current readings and two buttons for local reset of either individual outlets or the entire unit. Like all 800 Series WattBox models, the 8-outlet form factor offers individually controlled and metered outlets, surge protection, safe voltage, self-healing, optional UPS battery add-on, control system integration, and built-in remote management with OvrC.




EMI/RF Filtration
Single EMI filter for bank of 8 outlets
Type: NEMA 5-15
Total Number of Outlets: 9
IP Controlled Outlets: 8, on back
Accessory Outlet: 1 on front, unprotected and uncontrolled
Peak Impulse Current
Safe Voltage
Yes (90V ~ 136V)
UL 62368-1, UL 1449, UL 1283, FCC 47 CFR Part 15 Subpart B-Class B
Dimensions (W x H x D)
Unit: 17.33" x 1.74" x 12.29"
With Feet Installed: 17.33" x 2.31" x 12.29"
Protection Modes: L-N, L-G, N-G
Locking and Detachable Power Cord
AC Input Connection: IEC C-14
Operating Temperature
14°F - 104°F
Power Cord Length
6 Ft.
Line Voltage
120V, 60 Hz
Circuit Breaker Rating: 15A
UL Current Rating: 12A
UL Power Rating: 1440W
Voltage Protection Rating: L-N 700V, L-G 600V, N-G 700V
Joule Rating: 3240J
Rack Spacing
Fuse Type
Thermal Fuse
IP Control
IP Controlled Outlets: 8
API: Yes
Power Metering
Individual Outlets: Yes, 8
Device: Yes, 8 total
Surge Protection
Yes, MOV Type with AC Disconnect Thermal Fuse


Wattbox OvrC Info banner

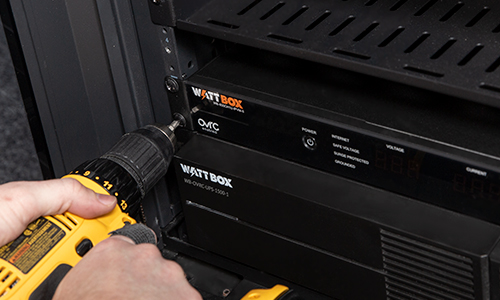

WB-800CH1U-IPVM-8 in a rack

1U Rack Mountable

We’ve heard your requests for a full 1U rack-mountable form factor, and the WattBox 800 Series 8-Outlet delivers. With this new 8-outlet model, there are even more ways to put a WattBox on every job. In addition to 8 individually metered and controlled outlets, there’s also a convenient accessory outlet on the front of the device, making it easy to plug in an additional device without disrupting the back of the rack.


Integrated Faceplate

All of the information you need is at your fingertips with an integrated faceplate. LED indicators show if your WattBox is connected to the internet, voltage and current readings (individual and global), and whether the unit is properly grounded. Two buttons (B1/B2) give you the option for local reset of individual outlets or the entire unit, and an AC power button allows you to toggle the unit on or off.


Ultimate in Troubleshooting & Control

WattBox is synonymous with individual outlet control; however, the 800-Series goes above and beyond, letting you monitor the current and voltage in real-time at each outlet for more advanced troubleshooting. Has your weekend ever been interrupted by a service call when the only problem was an unplugged or turned off device? With individual outlet metering, you can solve simple issues like these remotely and further strengthen WattBox’s three lines of defense: Self-Healing Auto Reboot, OvrC Client-Facing App, and OvrC Remote Management, to reduce or even eliminate service calls.


faceplate showing the voltage reading

Surge Protection & Power Conditioning

This professional-grade WattBox is engineered to protect critical equipment on the job. Safe Voltage protects gear by automatically disconnecting it during unsafe voltage conditions, while MOVs with UL94 V-0 rating provide critical surge protection. Additionally, there is a filter covering all outlets to reduce EMI/RF interference on the incoming AC line.


OvrC on a mobile device

Remote Management On-the-Go

With the easy-to-use OvrC mobile app, you’ll receive real-time alerts to address any issues quickly and view critical information for all devices, even those that have fallen offline. You can also easily create schedules and automatically reboot individual outlets all from the app, giving you more control from wherever you are.

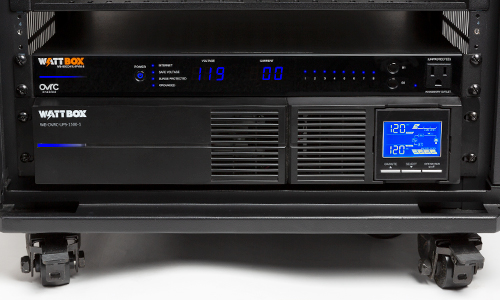

Optional UPS Battery Pack Add-On

Pairing an IP WattBox with a WattBox OvrC UPS Battery Pack safely backs up all of your equipment in case of power failure. This add-on lets you manage your system proactively by unlocking additional OvrC features including smart load shedding, remote alarm silencing, and critical battery health alerts.


OvrC on a mobile device

Control System Integration & IP WattBox API

WattBox is compatible with the industry’s most popular control systems, including Control4, Crestron, Elan, RTI, and URC. We’ve even added a next-generation Telnet API that lets you program unique features into your system or create custom solutions to deploy and monitor WattBox products across thousands of sites. With Telnet API, you can integrate with any third-party control system, monitoring platform, or other proprietary solutions.


Three Ways to Prevent Service Calls & Truck Rolls

This WattBox provides three lines of defense to fix problems and reduce service calls. Combine WattBox’s scheduling and auto-reboot feature with OvrC remote management and a client-facing mobile app, and you have an iron-clad solution built for pros. Simply put, no other remote management system comes close to what WattBox and OvrC can do.


Self-Healing Auto Reboot

WattBox power conditioners are uniquely designed to fix themselves without any outside intervention, helping to prevent service calls and dealer troubleshooting. The unit continuously monitors connectivity and when the connection is lost, it automatically reboots the troubled device as programmed. You can even schedule regular reboots through the local UI or OvrC platform.


Client-Facing App

OvrC Home is a free client-facing mobile app included with all WattBox IP products that allows your customer to fix small problems on their own. Through this intuitive app, they’ll be able to reset any device connected to individual WattBox outlets and use macros to execute a series of commands that you define. If for some reason customers still need to reach you, your company logo and contact information are easily accessible within the app.


OvrC Remote Management

Through an easy-to-use desktop or mobile app, you can reboot devices, modify configurations, update firmware and more – all from anywhere in the world. Plus, if a WattBox falls offline, OvrC provides you with a detailed notification so you can address the issue before your customer even notices. Upgrade to OvrC Pro, and you’ll get access to even greater diagnostics and troubleshooting tools across all OvrC-enabled products.
