CRX-N560
This micro receiver brings together the latest network and mobile device connectivity with conventional source support in a classic Hi-Fi design with outstanding sound quality.
- Network integration functions provide wider source access
- FLAC/WAV 192 kHz/24-bit signal compatibility
- AirPlay® allows music streaming from Mac®, PC, iPod®, iPhone®, iPad®
- NETWORK PLAYER CONTROLLER app for convenient operation from your smartphone or tablet
- USB digital connection for iPod, iPhone, iPad and USB devices
- Digital audio inputs for TV or Blu-ray Disc™ player
- Wi-Fi connection with optional YWA-10 adapter
- Bluetooth® connection with optional YBA-11 adapter
Features
Select Your Favorite Sources from Your Home Network

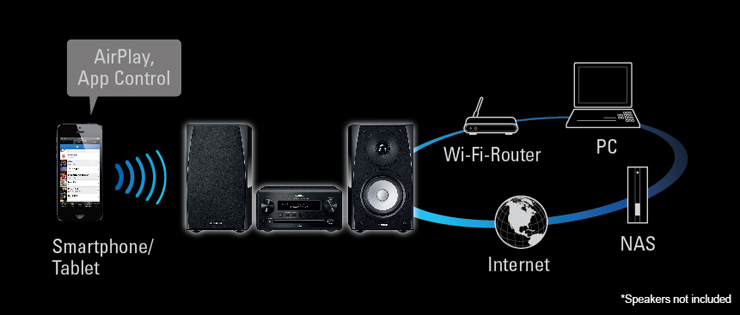

The CRX-N560 lets you enjoy conventional CD, radio and USB audio sources, but also includes network functions to greatly expand your musical choices. You can link to a home network to listen to music from your PC or NAS, stream music from online sources and enjoy thousands of radio stations via Internet radio. You can also stream your own stored music from your smartphone or tablet.
FLAC/WAV 192 kHz/24-bit Signal Compatibility
Providing compatibility with FLAC/WAV 192 kHz/24-bit audio signals, the CRX-N560 lets you play content downloaded in FLAC or WAV formats from music sites. Yamaha technologies refined over many years ensure high stability and reliability.
AirPlay® Allows Music Streaming from Mac®, PC, iPod®, iPhone® and iPad®
No more wires! AirPlay gives you the convenience of wireless music playback from your iPod/iPhone/iPad. By using the Compressed Music Enhancer, you can enjoy compressed sources with high quality sound.
NETWORK PLAYER CONTROLLER App for Handy Operation from Your Smartphone or Tablet
Download Yamaha’s NETWORK PLAYER CONTROLLER app and use it to select the source or tune you want to play, as well as to see song information and album art. You can also make network and other setting adjustments. The app is compatible with either iOS (iPod, iPhone, iPad) or Android™ OS.
USB Digital Connection for iPod, iPhone, iPad and USB Devices
The CRX-N560 provides a USB port on the front panel for quick connection of an iPod, iPhone, iPad or USB stick. You have instant access to all your stored music and the digital connection ensures that you hear it with the highest possible sound quality.
Digital Audio Input for TV or Blu-ray Disc™ Player
The CRX-N560 is equipped for digital audio, with both optical and coaxial inputs. The optical is for receiving audio from a TV and the coaxial for receiving audio from a Blu-ray Disc player. The audio stays in the digital domain, giving you pure, pristine dynamic sound for all your entertainment sources, from sports and other programs to movies and concerts. You’ll love how they sound through your audio system!
High Efficiency Digital Amp with High Quality Parts
In order to play network sound sources with high sound quality, the CRX-N560 is equipped with a highly efficient digital amplifier that ensures high sound clarity with low distortion. The amplifier power source and output filter utilize a high capacity capacitor and a high performance filter, selected based on extensive listening tests.
High Sound Quality Circuit Design
The CRX-N560 uses separate circuit boards for CD/DAC and network audio sources. Separating the power source and ground of the signal processor and amplifier minimizes mutual interference of audio signals. The digital audio source connects to the amplifier without digital-to-analog conversion, achieving clear and wide range sound quality with minimal signal loss.
High Grade Texture, Elegant Design
The main unit, which combines a hairline-finish aluminum front panel and piano black side panels, has a classic, elegant design that features diamond shaped front corners. The aluminum volume knob has a high-grain texture.
Other Notable Features
• Large-size, screw type speaker terminals
• 30 FM station tuning presets
Specs
HiFi System
| Center Unit |
Disc Type |
CD-DA, CD-R, CD-RW |
| USB |
Yes |
| Internet Radio |
Yes |
| AirPlay |
Yes |
| DLNA |
Yes |
| File Formats |
(USB / Network) MP3, WMA, AAC, WAV, FLAC |
| FM Tuner |
Yes |
| Tuner Presets |
30 |
| Ethernet |
Yes |
| Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) |
0.05% |
| Output Power/Channel (6 ohms, 1 kHz, 10% THD) |
32 W + 32 W |
| Weight |
6.0 lbs. |
| Dimensions (W x H x D) |
8-1/2” x 4-3/8” x 11-3/8” |
Technology
Network
Yamaha AV receivers are the perfect control centers for a home entertainment network. Their network functions include support for FLAC 96/24 (high quality lossless format), compatibility with Windows 7 and DLNA® 1.5 (for finding and playing digital sources) and WebBrowser Control from a PC or PDA.
AirPlay®
AirPlay provides the convenience of wireless music playback of your iTunes® from iPod®/iPhone®/iPad® and Mac®/PC.
DLNA® CERTIFIED
DLNA certification ensures a device has been tested and proven compatible with various CE, PC and mobile devices designed according to the DLNA Interoperability Guidelines. Products certified by DLNA will bear a logo that will give consumers peace of mind that the device they are purchasing has undergone rigorous testing and conforms to the Interoperability Guidelines.
CD Text Display
Get information about the CD currently playing right on the CD player’s display. The 3-mode text display shows the CD’s title, the artists name and the title of the track.
USB
This unit is equipped with a USB port that allows you to enjoy WAV (PCM format only), MP3 and WMA audio files from a USB memory device (USB flash drive).
Made for iPod®/iPhone®/iPad®
“Made for iPod, iPhone and iPad” means that an electronic accessory has been designed to connect specifically to iPod, iPhone, iPad and has been certified by the developer to meet Apple® performance standards.
iPod Digital Connection
iPod digital connection means that the digital signal from the iPod is transmitted directly to the system, minimising noise interference and allowing use of the DAC not in the iPod, but in the system. This results in more precise sound reproduction.
