AV receiver with built-in Bluetooth® for wireless music playback, stunning 4K Ultra HD video with HDCP 2.2, high dynamic range (HDR), BT.2020 compatibility and a discrete 5.1-channel amplifier design with automatic YPAO™ calibration to ensure optimal performance.
- 5.1-Channel surround sound
- Bluetooth® to stream music from your mobile device
- 4K Ultra HD pass-through with HDCP 2.2 support
- High dynamic range (HDR) and BT.2020 compatibility
- YPAO™ sound optimization tuning for your home
- Extra Bass to enhance bass output from smaller speakers
- Virtual CINEMA FRONT
Bluetooth®
Play your favorite streaming service. This AV receiver is equipped with Bluetooth functionality to let you enjoy easy wireless music playback from smartphones and other devices. The Compressed Music Enhancer from Yamaha is now optimized for Bluetooth audio transmissions to ensure that your music will have vivid, lively sound quality during wireless playback.

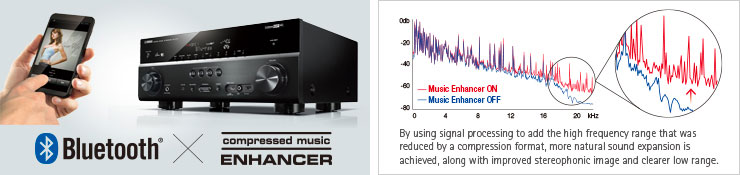

Compressed Music Enhancer
Hear more. When music is encoded into a digitally compressed format like MP3, the frequency response suffers. The Compressed Music Enhancer from Yamaha employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.
4K, HDR and BT.2020
Darker blacks, whiter whites and more vivid colors. This unit supports the latest HDMI® standards thanks to the transmission of 4K video at 60 frames per second (pass-through only). Fully enjoy the high definition video quality of 4K without degradation along with HDCP 2.2 that fully complies with the latest copyright protection, a standard for 4K video transmission. It also supports the wider color gamut of BT.2020 pass-through.
Sound Optimization
Every room is different. YPAO (Yamaha Parametric room Acoustic Optimizer) analyzes the room acoustics and adjusts various audio parameters for optimum sound in just a few minutes ensuring that the listening area is tuned to provide the best audio experience possible.

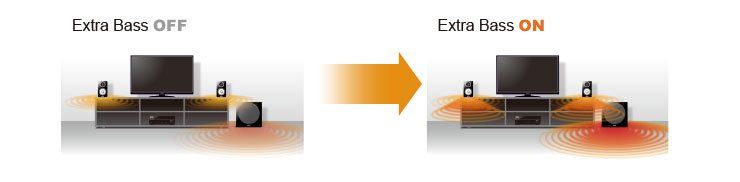

Rich Bass Reproduction
Feel your lows. This exclusive low-range enhancement technology delivers richer bass than you would expect from smaller sized speakers while maintaining good localization and sound balance even with compact front speakers. When a subwoofer is used, it improves the volume of the entire low range of the speaker system, not only the front speakers, but also enhancing the bass from the subwoofer. You'll enjoy video and music with sound that has exceptional power and presence.

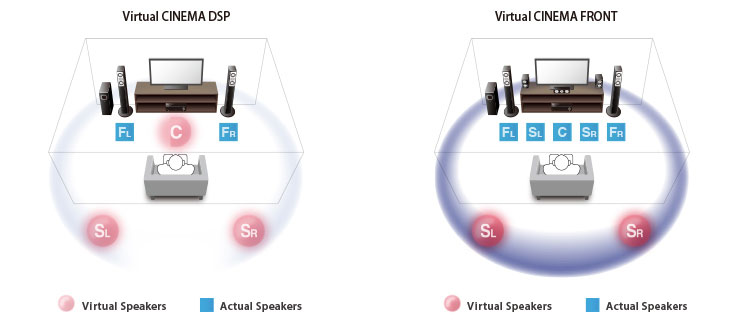

Virtual Surround Sound
Surround from the front. Even when it is impossible to install surround speakers behind the listening position, you will enjoy virtual 5-channel surround sound with all of the speakers placed in the front of the room. This is ideal for those who can't or prefer not to install speakers in the rear of the room.
CINEMA DSP
Experience different venues. With CINEMA DSP, experience a sound field that allows you to transform the dynamics of the listening environment with the acoustics of famous venues from all around the world.
Discrete Amp Configuration
Enjoy quality sound. This AV receiver was designed with a strong focus on achieving exceptionally high sound clarity. It employs a discrete amp configuration and a low-jitter PLL circuit, which contribute to its excellent audio performance.
HDMI with 3D and Audio Support
See and hear 3D. This AV receiver supports 3D video signals. Additionally, the Audio Return Channel function enables audio to be sent and received via the same HDMI cable, so you can hear the sound from the TV via a single HDMI cable.
SCENE for One-Touch Start
Ready, set, go. Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode. You can reset the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.
AV SETUP GUIDE for Easier Installation
Install with ease. The AV SETUP GUIDE makes it much easier to perform the set up process with the Yamaha AV receiver. This app assists you with cable connections between the AV receiver and source devices. Additionally, it guides you through various settings such as speaker connections, TV and source device connections and power amplifier assignments. System illustrations and actual AV receiver images help you understand how to make the connections between devices. It is available in multiple languages and is designed for iOS and Android™ tablets.
ECO Mode
Go green. When ECO mode is turned on it can reduce power consumption by about 20 percent.
*Compared to power consumption when ECO mode is off (Yamaha measurement).
Selectable Standby
Be lazy. Auto Power Standby lets you save energy by automatically turning off the AV receiver's power after 20 minutes, two, four, eight or 12 hours.
| Amplifier Section |
Channel |
5.1 |
| Rated Output Power (1kHz, 1ch driven) |
100 W (8 ohms, 0.9% THD) |
| Rated Output Power (20Hz-20kHz, 2ch driven) |
70 W (8 ohms, 0.09% THD) |
| Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) |
140 (6 ohms, 10% THD) |
| Dynamic Power per Channel (8/6/4/2 ohms) |
110 / 130 / 160 / 180 W |
| Surround Sound Processing |
CINEMA DSP |
Yes |
| DSP Programs |
17 |
| Dialog Level Adjustment |
Yes |
| SILENT CINEMA / Virtual CINEMA DSP |
Yes (Virtual CINEMA FRONT) |
| Dolby TrueHD |
Yes |
| Dolby Digital Plus |
Yes |
| DTS-HD Master Audio |
Yes |
| Audio Features |
Compressed Music Enhancer |
Yes (including for Bluetooth®) |
| YPAO sound optimization |
Yes |
| Adaptive DRC (Dynamic Range Control) |
Yes |
| Initial Volume & Maximum Volume Setting |
Yes |
| Audio Delay |
Yes (0-500 ms) |
| 192kHz/24-bit DACs for all channels |
Yes (Burr-Brown) |
| Video Features |
4K Ultra HD pass-through |
Yes (4K/60p 4:4:4) |
| HDMI 3D pass-through |
Yes |
| HDMI Audio Return Channel |
Yes |
| Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync |
Yes |
| Extensive Connection |
HDMI Input/Output |
4 in / 1 out (HDCP 2.2, HDR and BT.2020 compatible) |
| HDMI CEC |
Yes |
| Front AV Input |
Mini-jack |
| Digital Audio Input/Output: Optical |
1 / 0 |
| Digital Audio Input/Output: Coaxial |
2 / 0 |
| Analog Audio Input/Output |
3 (1 front) / 0 |
| Composite Video Input/Output |
3 / 1 |
| Preout |
Subwoofer |
| Headphone Output |
Yes |
| Connectivity |
Bluetooth |
Yes (SBC) |
| Tuner Section |
FM/AM Tuner |
Yes |
| User Interface |
On-screen display |
Yes |
| SCENE |
SCENE (4 sets) |
| Remote Control Unit |
Yes |
| General |
Standby Power Consumption (IR only) |
≤0.3 W |
| Auto Power Standby |
Yes |
| ECO mode |
Yes |
| Dimensions (W x H x D) |
17-1/8” x 6” x 12-3/8 |
| Weight |
16.3 lbs. |
Yamaha AV Receiver Setup Guide App
AV SETUP GUIDE

AV SETUP GUIDE is an application that assists you with cable connections between an AV receiver and source devices as well as AV receiver set up.
This app guides you through the various settings such as speaker connections, TV and source device connections and assigning the power amp.
System illustrations and actual AV receiver images help you easily understand how to make the connections between devices.
If your AV receiver is network capable, parameters set on this app will be automatically copied to your AV receiver.
Wide Range of Functions

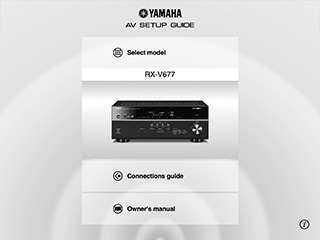

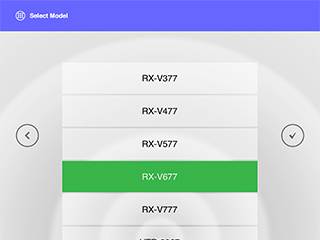

AV Receiver Model Select
Select your model.
Home Menu
Your model is displayed.
Start connection guide or view owner's manual.

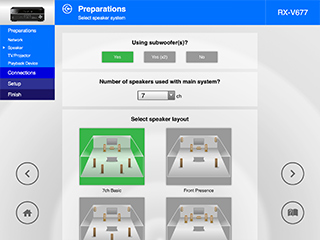

Speaker Layout
Based on your selected speaker configuration for the room, this app shows you all the possible speaker layouts available to select.

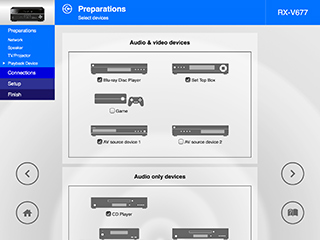

Source Device Select
Select all connecting devices from the list.
Check input/output terminals on these devices.

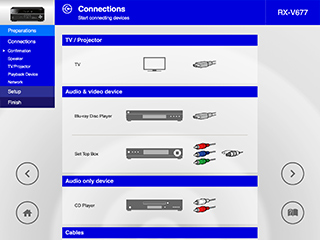

Confirmation of TV / Source Devices and Cables
Based on source device select result, the app shows you all necessary interconnection cables.

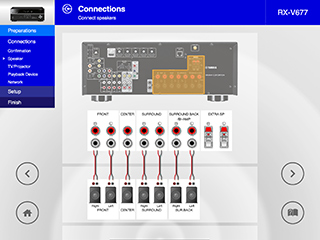

Speaker Connection
Based on your selected speaker layout in an earlier step, the app shows you which speaker terminals the speakers need to be connected to.

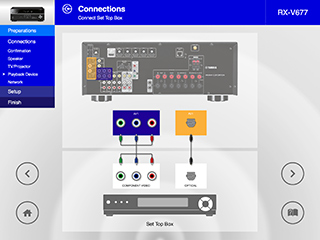

TV / Source Devices Connection
Based on your selection of input/output on connected devices, the app shows you which input/output terminals on the AV receiver these devices need to be connected to.

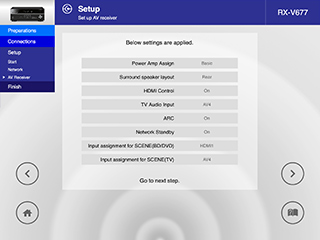

Automatic Set Up via Network
Parameters set in the app will be automatically copied to your AV receiver. This function is supported only by network capable models.

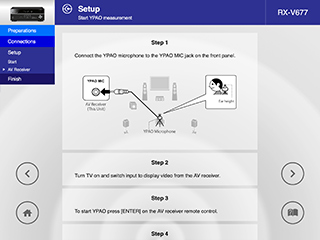

YPAO™ Setting Guidance
YPAO automatically optimizes the speaker settings to suit your room. The app shows you how to use YPAO to check if the speaker connections are correct. Certain models will skip this step.
