zBoost® PRO 10K SL ZBC745SL

Cell Phone Signal Booster for Professional Installers

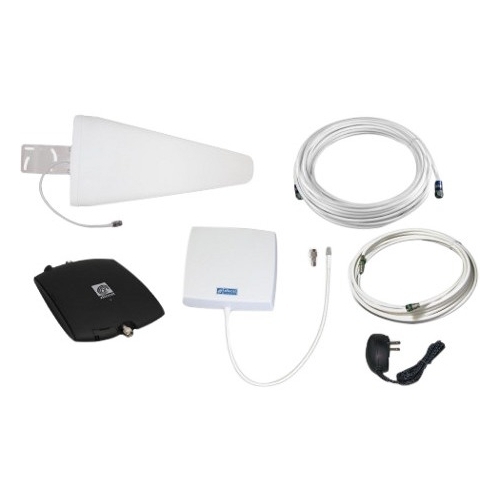

zBoost, a leader in consumer cell phone signal boosters, offers the improved zBoost PRO 10K SL as the solution to your missed and dropped calls indoors. The zBoost PRO boosts voice and text for all major carriers. The zBoost PRO 10K SL captures the marginal to reliable cellular signal you have outdoors and rebroadcasts it indoors, up to 10,000 square feet, so you can enjoy clearer, faster and more reliable service without interruption. The ZBC745SL is backed by a 2 year Manufacturer’s Warranty Replacement and ships complete: amplifier base unit, indoor panel antenna, power supply, 50 ft. and 15 ft. of RG6 coaxial cable, high-gain external antenna, and mounting hardware.

Benefits include:

• High performance dual band signal booster – coverage up to 10,000 sq. ft. (up to 84 dB system gain)
• Ideal for buildings with marginal to reliable outside signal
• Reduces dropped and missed calls and can provide faster 3G data performance for multiple simultaneous users
• Boosts performance on iPhone™, Samsung™, Android™ and other phones, mobile devices and wireless alarm panels
• Automatically operates at maximum gain – no manual adjustments needed
• Extends phone battery life – uses less power when signal is stronger
• Designed in Silicon Valley – Made in North America

Product Specifications – ZBC745SL

PCS
Frequency 1850 to 1990 MHz
System Gain 84 dB
PCS band supported A, D, B, E, F, C
Networks CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G

Cellular
Frequency 824 to 894 MHz
System Gain 75 dB
Cellular band supported A, B, A’, B’
Networks CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS, HSPA, 3G

General
Power Consumption – Power Supply Current 3W standby; 7W max signal - 2.0A Max
Wall Supply Input; Voltage 100-240VAC 50-60 Hz; 5.0VDC
System Certifications FCC Parts 15 & 20, Industry Canada
Base Unit Size and Weight 5” x 7” x 1.25” – 9 oz.
Operating Conditions Indoor Use Only (40O- 105O F)
Coverage (open areas) Up to 10,000 sq. ft.
