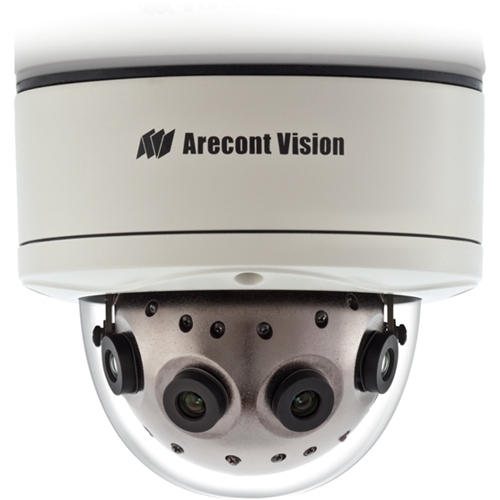

ARECONT AV12186DN 12.0MP 180 (4 X 5.4MM) CAMERA DN WDR
Features
World’s First 12MP, H.264, Wide Dynamic Range, 180° Panoramic Megapixel Camera
WDR up to 100dB allowing users to see clearly in shaded and bright areas of the scene simultaneously
All-in-one H.264 SurroundVideo® Solution
True Wide Dynamic Range Imaging
Day/Night Functionality with Removable IR Cut Filter
Dual Encoder H.264/MJPEG
Privacy Mask
Motion Detection
Forensic Zooming
Flexible cropping
Bit Rate Control to limit bandwidth
Binning Mode to Increase Sensitivity
Multi-Streaming
New Smaller Vandal-resistant housing with IK-10 and IP66 rated Dome
Easily adjustable 2-axis camera gimbal with 360° pan and 90° tilt
Mounting options include pendant mount, wall mount, corner mount, pole mount, junction box adapter and electrical box adapter
PSIA and ONVIF Conformant
PoE and Auxiliary Power: 12-48VDC/24VAC
Reduced Overall System Cost
Description
NEW!
The 12 megapixel SurroundVideo® AV12186DN is the industry’s first WDR panoramic camera. The SurroundVideo® camera is an all-in-one solution with wide dynamic range of up to 100dB at full resolution, with a 12-megpixel panoramic dual encoder (H.264 and MJPEG) and a vandal-resistant dome. A SurroundVideo® camera can replace multiple fixed or PTZ cameras while recording the entire panoramic field of view with the ability to zoom into multiple regions of interest — a return on investment that’s easily measured.
12 Megapixel, 5.2fps, Wide Dynamic Range, H.264, 180° Panoramic IP camera, IP66
|
|
Pixel Density
12.00 MP |
Full Field of View (FOV) Resolutions
- 8192(H) x 1536(V) 12 megapixel
|
Frame Rate
5 fps |
|
Mechanical
- Casing:
Die-cast aluminum chassis with 4" polycarbonate dome bubble
IP66 weather proof standard
Vandal Resistant, IK10 rated
- Easily adjustable 3-axis camera gimbal w/ 360°pan, 90°tilt & 360°z-axis
- Total unit dimensions:
Ø5.5 x 4.9 in (H), bubble only: Ø4.0 x 2.4 in (H)
Ø140.3 x 124.6mm (H), bubble only: Ø102 x 61.8mm (H)
Weight: 2.8 lbs. (camera); 3.4 lbs. (camera with packaging)
|
Cropped Resolution
- 4096(H) x 768(V) 3 megapixel
|
Data Transmission
- 5.2fps @ 8192x1536
- Compression type
H.264 (MPEG-4, Part 10)/Motion JPEG
- TFTP, HTTP,RTSP, RTP/TCP, RTP/UDP (Unicast/Multicast)
- 100Base-T Ethernet network interface
- Bit rate control from 100Kbps to 10Mbps
- Un-throttled data rate up to 50Mbps
- Multi-streaming: 8 non-identical streams
|
Electrical
- General purpose opto-isolated input and output
- Power over Ethernet (PoE): 802.3af
- Auxiliary power 12-48V DC and 24V AC
- Power consumption:
- Total PoE Solution: No external power requirement
|
Regulatory
|
Standard
|
Programmability
- Auto-adjustment between LDR and WDR modes
- Binning mode, privacy mask, flexible cropping (Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264)
- +/-5 ˚ Digital vertical alignment to adjust images
- Auto Exposure and Gain Control >120dB
- On-camera real-time motion detection privacy mask with up to 1024 detection zones
- Auto multi-matrix white balance
- 50/60Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ) and image flip - 180 degree rotation
- MoonLight™ mode - extended exposure & proprietary noise cancellation
- Programmable shutter speed to help control motion blur
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Picture-in-Picture: simultaneous delivery of full field of view and zoomed images
- Bandwidth & storage savings by running at ¼ resolution
- Bit rate and bandwidth limit control
|
Environment
- IP66 Ingress Protection Rated (Water/Dust) Housing
- IK-10 rated, vandal resistant polycarbonate dome
- Operating temperature:
-30°C (-22°F) to +50°C (122°F)
- Storage temperature: -30°C (-22°F) to +60°C (140°F)
- Humidity 0% to 90% (non-condensing)
|
Product Imaging
- Four 3 Megapixel effective CMOS WDR image sensor
- Progressive scan
- 2048(H) x 1536(V) pixel array each sensor, 1/3.2" optical format
- 2.2 μm pixel pitch
- Maximum SNR 51 dB
- Minimum illumination of:
Color (no binning): 0.5 Lux @ f2.0
Color (binning): 0.25 Lux, IR sensitive
Day / Night: 0 Lux, IR sensitive
- Wide Dynamic Range up to 100dB
|
|
|
