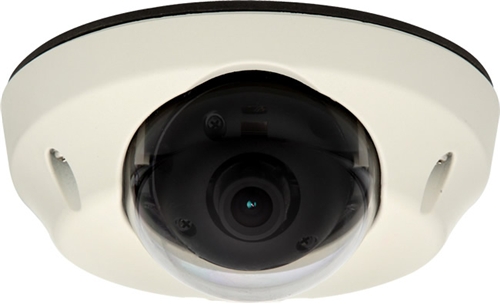

DWC-MPA20M - IP Cameras (with MEGApix Technology)

The MPA20M MEGAPIX camera is a triple codec network camera that provides 1080P (1920X1080) megapixel resolution at 30 frames per second. The camera's advanced technologies like Electronic Day and Night and 3D-DNR will deliver the best images in any type of environment, and Power over Ethernet will simplify installation by connecting both power and network through a single cable.

• ONVIF (Open Network Video Interface Forum) Compliant
• 1/2.7" CMOS Sensor
• 4.3mm Fixed Lens
• High Resolution 2.1 Megapixels
• 1080P (1920X1080) at 30fps
• Power over Ethernet [PoE] & DC12V
• Web Server Built-in, Free DDNS
• H.264 and MJPEG Dual-Stream
• Electronic Day and Night
• 3D-DNR (3D Digital Noise Reduction)
• Programmable Privacy Zones
• Mirror
• 8X Digital Zoom
• IP66 Certified (Weatherproof)
• 2 Year Warranty

Camera Mount	Surface
Image Device	CMOS Sensor
Image Size	1/2.7
Image Pixels Total	2016 (H) X 1108 (V)
Minimum Scene Illumination	F1.6, 30IRE: 0.8 Lux [Color], 0.01 Lux [B/W]
Functions	BLC, AGC, Mirror, Motion Detection, Privacy Zone, 3D-DNR, Digital Zoom, POE,
Lens	4.3mm Fixed
Horizontal Resolution	1920 (H) X 1080 (V)
Video Output	LVBS Out (16 Bit Y, Cb, Cr Digital, BT-1120)
Operating Temperature	-10°C ~ 55°C (14°F ~ 131°F)
Operating Humidity
Power Requirements	PoE [Power over Ethernet], DC12V
Power Consumption	5.16W, 430mA
Dimensions (W x H)	120 X 55.7 mm 4.72 X 2.19 in
Certificatons Held	CE, FCC, RoHS
Warranty (Limited)	Two (2) Year
Weight	0.728 lbs
