20 Megapixel, 3.5fps, Day/Night H.264/MJPEG, 180˚ Panoramic IP Camera

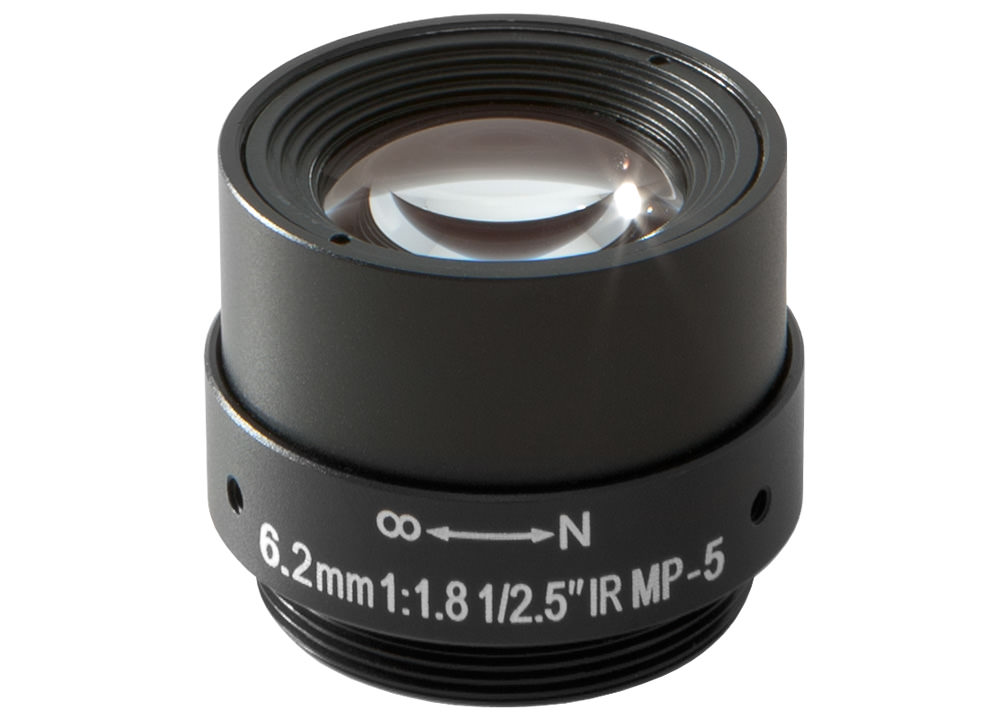

Lens Option: MPL6.2
-
World’s First 20MP H.264 Day/Night 180° Panoramic Megapixel Cameras
-
Fastest Frame Rate on the Market: - 3.5fps @ 20MP and 11fps @ 5MP
-
Unparalleled High Definition Resolution to Substitute up to Sixty-five Analog Cameras
-
All-in-one H.264 Day/Night SurroundVideo 180° Solution
-
IP66 and Vandal resistant Dome
-
Easily adjustable 2-axis camera gimbal with 360° pan and 90° tilt
-
Hard ceiling mount and Surface mount with optional pendant mount and wall mount
-
+/- 5 ° Electrical Vertical Alignment to Locate Each Sensor Position
-
Dual Encoder H.264 (MPEG Part 10) and MJPEG
-
Bit Rate Control
-
Privacy Mask
-
Multi-Streaming
-
Forensic Zooming
-
Binned Mode to increase Sensitivity
-
Reduced Overall System Cost
Pixel Density
20.00 MP |
Full Field of View (FOV) Resolutions
- 10240(H) x1920(V)=2560(H) x 4 x 1920 (V) 20 megapixel total
- 5120(H) x960(V)=1280(H) x 4 x 960(V) 5 megapixel total
|
Frame Rate
4 fps |
|
Mechanical
- Easily adjustable 2-axis camera gimbal with 360° pan and 90° tilt
- Hard ceiling mount and surface mount embedded
- Die-cast aluminum chassis with 5.5” vandal resistant polycarbonate dome bubble
- Conduit 3/4” NPT standard
- Total Unit dimensions:
- Ø6.9 x 6.55 in (H), bubble only: Ø5.5 x 3.4 in (H)
- Ø175 x 166 mm (H), bubble only: Ø140 x 87 mm (H)
- 3.81 lbs (1.75 kg)
|
Cropped Resolution
|
Data Transmission
- Video frame rate up to:
- 3.5 fps @ 10240x1920
- 4.2 fps @ 10240x1600
- 11 fps @ 2560x1920
- 11 fps @ 2560x1600
- Video frame in binned mode:
- 13 fps @ 5120x960
- 27 fps @ 1280x960
- Compression type
- H.264 (MPEG4, Part 10)
- Motion JPEG
- 21 levels of quality
- TFTP, HTTP, RTSP, RTP over TCP, RTP over UDP image transmission protocols
- 100Base-T Ethernet Network Interface
- Bit rate control from 100Kbps to 10Mbps
- Multi-streaming: 8 non-identical streams
|
Electrical
- General purpose opto-coupled input and output
- Power over Ethernet (PoE): PoE 802.3af for camera
- Auxiliary power 12-48V DC, 24V AC
- Power consumption:9 watts maximum
- Heater & Blower Electrical - Voltage Input: 12V to 20V DC/24VAC (separate power required) - Power Output: 11W Max (DC12V); 13W Max (AC24V) - Heater Switch: On: 17C° (62.6 °F), Off: 30 °C (86 °F) - Blower Switch: On: 10C° (50°F), Off: 15 °C (59 °F) - Blower Switch: On: 50C° (122 °F), Off: 45 °C (113°F)
|
Regulatory
|
Standard
N/A |
Programmability
- +/- 5 ° Electrical Vertical Alignment to adjust sensor position
- Privacy mask
- Binned Mode
- Auto Exposure (AE) and Gain Control (AGC) >120dB
- On-camera real-time motion detection with 1024 detection zones
- Auto backlight compensation
- Auto multi-matrix white balance
- 50/60Hz selectable flicker control
- Electronic pan, tilt, zoom (PTZ)
- Electronic image flip - 180 degree rotation
- Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264
- Programmable shutter speed to help control motion blur
- MoonLight™ mode - extended exposure and proprietary noise cancellation
- Programmable resolution, brightness, saturation, gamma, sharpness, tint
- Picture-in-Picture: simultaneous delivery of full field of view and zoomed images
- Bandwidth & storage savings by running at 1/4 resolution
|
Environment
- IP66 weatherprooing standard
- Operating temperature:
- No Heater: 0°C (32 °F) to +60°C (140 °F)
- With Heater: -30°C (-22 °F) to +60°C (140 °F)
- Stable image temperature: 0°C (32 °F) to +50°C (122 °F)
- Storage temperature: -30 °C (-22 °F) to 60 °C (140 °F)
- Humidity 0% to 90% (non condensing)
|
Product Imaging
- Four 5 megapixel CMOS image sensors
- 2592(H) x 1944(V) pixel array each sensor
- 1/2.5” optical format
- 2.2 µm pixel pitch
- Bayer mosaic RGB filter
- Minimum illumination of:
- Color(non-binned): 0.3 Lux @ F1.8
- Color(binned): 0.15 Lux @ F1.8
- Day/Night: 0 Lux, IR sensitive
- Dynamic range 70.1 dB
- Maximum SNR 44.1 dB
|
