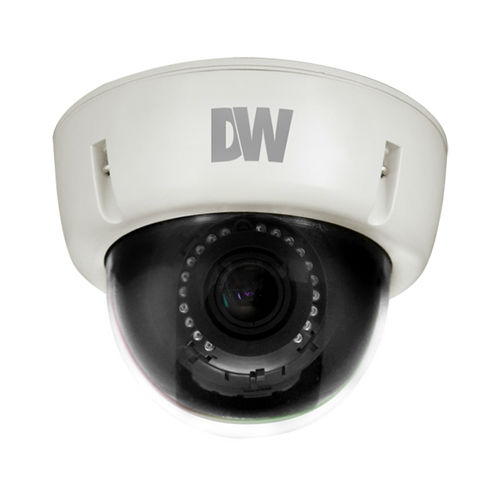

DIGITAL WATCHDOG DWCV6361WTIR 690TVL 2.8-12MM WDR IR VAND DM
Our WDR CMOS Series is our new ultimum Wide Dynamic Range cameras equipped with a powerful CMOS sensor chip, offering the most powerful Wide Dynamic Range feature in the market. The cameras are perfect for any project where cameras face harsh lighting conditions, with very dark and very bright areas in the same field of view. By capturing the dark areas and bright separately and then interlacing the image, the camera allows you to utilize one camera and view all the details in complex Fields of View
Features
- Auto Sensing Dual Voltage with Line Lock: 12VDC/24VAC
- D/N - Day/ Night: True
- DNR - Digital Noise Reduction: 2D DNR
- Easy Icon Driven OSD Menu with Built-in Joystick
- IR Distance: 100ft Range IR with Intelligent Camera Sync
- Image Sensor: 1/3” 760H CMOS Sensor Chip (760 Horizontal Pixels)
- Lens: 2.8~12mm Varifocal Auto Iris Lens
- NEMA RATING: IP66 (Protects against dust and high pressure water.)
- Resolution: 690 Horizontal TV Lines
- Small & Compact Size
- Smear Cancellation
- WDR- Wide Dynamic Range
Specifications
| Image |
| Frequency |
|
15.734KHz (H), 59.95Hz (V) |
| Image Sensor |
|
1/3” 760H CMOS Sensor Chip (760 Horizontal Pixels) |
| Minimum Illumination |
|
F1.2 (30IRE): 0.0 Lux |
| Resolution |
|
690 Horizontal TV Lines |
| S/N Ratio- Signal to Noise Ratio |
|
58dB (AGC off) |
| Scanning System |
|
2 : 1 Interlace |
| Synchronization |
|
Internal |
| Total Pixels (H X V) |
|
756(H) X 504(V) |
| Video Output |
|
CVBS: 1.0Vp-p / 75 Ω |
| Lens |
| Focal Length |
|
2.8~12mm |
| IR Distance |
|
100ft Range IR |
| Lens Type |
|
DC Varifocal Auto Iris |
| Mechanical |
| Dimensions |
|
145 x 108.8 mm (5.7 X 4.28 in) |
| Housing Material |
|
Aluminum |
| Housing Type |
|
Vandal Dome |
| Warranty |
|
5 Years Limited |
| Weight |
|
1.65lbs |
| Operational |
| AGC |
Auto Gain Control |
LOW / MEDIUM / HIGH |
| AWB |
Auto White Balance |
ATW/ OUTDOOR/ INDOOR |
| D/N |
Day/ Night |
AUTO/ COLOR/ EXT |
| DNR |
Digital Noise Reduction |
Level 1 ~ 3 |
| Sharpness |
|
1 ~ 10 |
| Smear Cancellation |
|
yes |
| WDR |
Wide Dynamic Range |
LOW / MIDDLE / HIGH |
| Environmental |
| NEMA RATING |
|
IP66 (Protects against dust and high pressure water.) |
| Operating Humidity |
|
Less than 90% (Non-Condensing) |
| Operating Temperature |
|
-10°C ~ 55°C (14°F ~ 131°F) |
| Power Consumption |
|
DC12V: 1.8W, 150mA, LED On: 4.3W, 358mA AC24V: 1.8W, 75mA, LED On: 4.3W, 158mA |
| Voltage |
|
Dual (12VDC & 24VAC) |
