LFE Mono Block Class J Amplifier

1 x 400 WRMS (8-Ohms Mono)

1 x 700 WRMS (4-Ohms Mono)

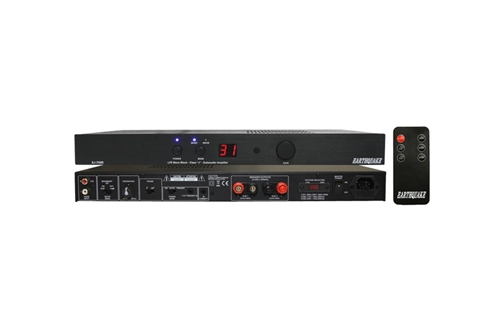

Earthquake’s XJ-700R amplifier addresses the needs to correctly adjust a room to precision audiophile status.

Intended Use:

Contractors, Custom Installers & Retailers
Home Theater
Sound Systems
Marine and RV Compatible
Subwoofer Applications

- AUDIO INPUTS: Connect to Unbalanced Female RCA
Inputs. Connect the Right Female RCA input from an
LFE output connection on a receiver or pre-amp
processor.

- BOUNDARY EQ: In ON mode, the response remains
flat; In OFF mode a +3dB. Boundary EQ removes
exaggerated boomy sounds created by corner loading,
large wall surfaces, or installations inside custom
cabinetry. For a natural, tighter performance in less
than ideal installation circumstances where
boundaries are influencing the sound desired, select
the ON position to compensate.

- CROSSOVER: Crossover frequency setting of the
Low Pass Filter. Factory-set at 80Hz; the XJ-700R has
the capability to be adjusted from 40 to 160Hz.

- POWER MODES: ON / AUTO / TRIGGERED

- IR CONTROL: Use this 1/8” Mono mini-jack to connect
to most IR emitter output connections. The signal will
be transferred and flashed to the IR receiver internally
behind the front panel.

Power Handling
1 x 700 WRMS (4-Ohms Mono)
1 x 400 WRMS (8-Ohms Mono)
Frequency Response 18Hz-160Hz
Total Harmonic Distortion <0.02%
Finish Black
MSRP $850.00
