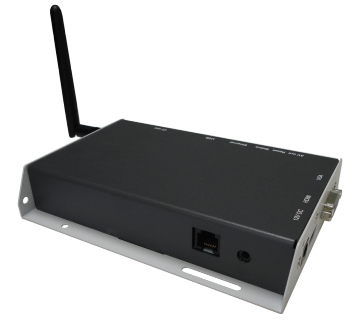

The XMP-3450 Live Player integrates external live video with dynamic HTML5 content to create the most relevant and attractive digital signage display. RS-232 port also allows controlling supported professional monitors to turn on/off at scheduled times.
Adfotain Manager Express Firmware Version 3.0.30
DOWNLOAD ADFOTAIN SOFTWARE
Live Audio/Video Input
The A/V-in port on the XMP-3450 connects to live sources such as a TV tuner or a camcorder via analog composite A/V signal to present the live show as a part of the displayed content.
Convenience of the Wireless LAN
The XMP-3450 incorporates the latest wireless LAN technology and effectively reduces installation cost at deployment sites.
By incorporating optional 3G/4G access points, the XMP-3450 can further be integrated into the mobile network architecture.
Solid Performance
The XMP-3450 is built using high-performance hardware-based media decoder chip capable of reproducing brilliant video performance up to 1080p. Unlike conventional player built using PC technologies, the video performance of the XMP-3450 is guaranteed by hardware and would avoid stuttering typical among software decoders.
Most Software Options
IAdea pioneered using the W3C SMIL (Synchronized Multimedia Integration Language) technology to establish the industry's first open platform. SMIL devices enjoy the largest number of great supporting software in the industry. This gives you the power to choose the solution that works for your project.
IAdea again re-invented the industry by introducing the first HTML5-capable media appliance. Touted by technology leaders as the next greatest platform, HTML5 enables IAdea devices to be easily programmed for almost every imaginable application.
Specifications
| Content Management
|
| Networking
| Ethernet
IEEE 802.11b/g/n Wireless LAN (2.4GHz)
3G mobile network (via USB dongle; availability varies by region)
|
| Programming
| SMIL + HTML5
|
| Media Format Support
|
| Performance
| 1080p Full HD video/stills
|
| Streaming
| H.264 over RTSP multi-casting
|
| Video codecs
| H.264 (1080p)
VC-1 (1080p)
MPEG-4 ASP (720p)
MPEG-2 (1080p)
MPEG-1 (720p)
|
| Image codecs
| PNG (1920x1080)
JPEG (1920x1080)
|
| Audio codecs
| MPEG L2/MP3 up to 320Kbps
AAC in H.264 streams
|
| Hardware
|
| Video
| HDMI/VGA up to 1080p (same output simultaneously)
Composite NTSC/PAL output
Composite NTSC/PAL A/V input
|
| Audio
| Stereo line-out / line-in
|
| Mounting
| VESA MIS-D 100 mounting points
|
| Local storage
| 4GB solid-state storage (2 hours of 4Mbps video)
|
| Power consumption
| 10 watts (typical)
|
| Power supply
| 12V DC @ 1.5A max
|
| Dimensions
| 156 x 115 x 29 (mm)
6.1 x 4.5 x 1.1 (in)
|
| Weight
| 380g / 0.8 lbs
|
| Environmental
| Operating temperature: 0-40 C
Humidity: 5-85% non-condensing
|
| Compliance
| CE / FCC / RoHS
|
| Standard accessories
| Power adapter
Ethernet cable
3.5mm-to-RCA A/V cable x 2
Wireless antenna
RS-232 adapter
|
| Optional accessories
| PIO-101 GPIO Adapter
PBN-004 GPIO Button Set
|
| Warranty
| 1-year Parts and Labor
|
