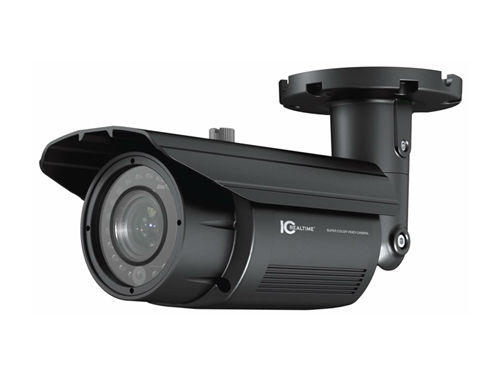

600TVL WideLux Night Vision Vari-focal Bullet Camera
WideLux WDR camera is specially designed for the professional Day/Night surveillance with 2D/3D adaptive noise reduction filter and Highlight Eclipse technology built-in. Super High Resolution Quality - EL1000 reproduces True Color image of 600TVL at daytime and Noiseless B/W image of 650TVL at nighttime.
- VC65S produces High Quality 600 TVL at Day and 650TVL at Night |
- Day / Night with 2D/3D adaptive noise reduction |
- WideLux WDR with Highlight Eclipse technology |
- 75ft IR |
- Vari-focal 2.8~12mm |
Userful Links:
Imager / Electrical |
Image Sensor |
1/3"" Sony Super HAD CCD |
Effective Pixels |
NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
H.Resolution |
600TV Lines (Day) / 650TV Lines (Night) |
Synchronization |
Internal |
Scanning System |
2:1 Interlaced |
Video Output |
1.0Vp-p Composite. 75 Ohms |
S/N Ratio |
more than 52 dB (AGC off) |
Minimum Illumination |
0 Lux |
Shutter Speed |
NTSC = 1 / 60sec ~ 1 / 100,000 PAL = 1 / 50sec ~ 1 / 100,000 |
Gamma Correction |
0.45 |
White Balance |
1,800 ~ 11,000 K Auto (ATW/Push Lock/Manual selectable by OSD) |
Gain Control |
Standard: -6dB ~ 34dB Auto/Maximum by OSD |
Smear Effect |
0.005% |
Power / Physical / Environmental |
Power |
12VDC (120mA (IR Off) 340mA (IR On)) |
Lens (standard) |
2.8-12mm Varifocal |
Viewable distance |
up to 75' in 0 lux |
MTBF of IR |
20,000 hours |
Iris Control |
Auto |
Operation Temp |
14°F - 122° F (-10°C - 50° C) 90% RH |
Measurement |
3.46"" x 4.33"" x 8.74"" (88mm x 110mm x 222mm) |
Weight |
2.21lb or 35.27oz or 1,000g |
