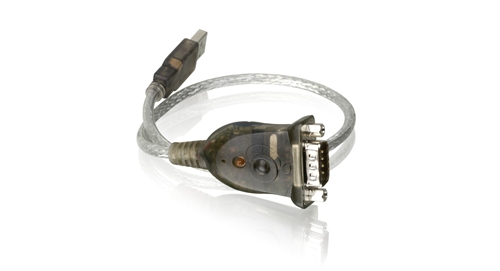

USB to SERIAL RS-232 ADAPTER

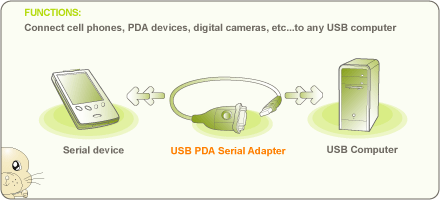

The USB to Serial RS-232 Adapter provides one RS-232 Serial (DB-9 male) connector via one standard USB port at a data transfer rate of up to 230Kbps. You can instantly enjoy connectivity with modem, PDA, POS, or other serial devices on your PC or Mac without the hassle of opening your computer case. It provides a quick, simple, and cost-effective solution and is ideal for various communication and automation applications. This makes the USB interface transparent to serial peripherals, allowing them to easily interface with USB computers and eliminates the setup hassle found with traditional serial port connections. This device also supports energy saving suspend and resume operations.
Features
- USB 1.1 and USB 2.0compatible
- Works with serial peripheral devices, converts the serial interfaceto USB connection
- 16" cable length
- LED status light for data transfer monitoring
- Supports the RS-232 Serial interface
- Supports automatic handshake mode
- Up to230Kbps data transfer rate
- Supports remote wakeup and power management
- Provides a 96 byte buffer for each upstream and downstream data transfer
- Easy Installation
- No IRQ required
REQUIREMENTS
-
For PC Users
- Windows® XP, Windows® Vista, Windows® 7
- Available USB port
For Mac Users
- Mac OS X v10.3.9 or above
- Available USB port
PACKAGE CONTENTS
- GUC232A USB to Serial adapter cable
- Installation CD
- User Manual
- Warranty/Registration Card
SPECS
| Function |
GUC232A |
| Housing |
| Case |
Plastic |
| Power Consumption |
90mA |
| LEDs |
| On Line |
1 |
| Operating Temperature |
41 to 104 degree Fahrenheit |
| Storage Temperature |
-4 to 140 degree Fahrenheit |
| USB Specification |
USB 1.1 compliant |
| Transfer Rate |
Up to 230Kbps |
| Humidity |
20-80% RH, (Non Condensing) |
| Cable Length |
14 in. (40.64 cm.) |
| Power Connections |
Bus powered |
| International - Languages |
English |
| Dimensions |
GUC232A |
| Unit Dimensions |
| Width |
1.36 in. (3.45 cm.) |
| Height |
0.64 in. (1.63 cm.) |
| Length |
2.63 in. (6.68 cm.) |
| Unit Package Dimensions |
| Width |
6.25 in. |
| Height |
8.5 in. |
| Depth |
2.5 in. |
| Master Carton |
| Width |
12.756 in. |
| Height |
18.189 in. |
| Depth |
16.457 in |
| Master Carton Qty. |
24 |
| Weight |
| Master Carton Wt. |
12.10 lbs. |
| Unit Pack Wt. |
0.32 lb. |
| Unit Wt. |
0.22 lbs. (0.1 kg.) |
