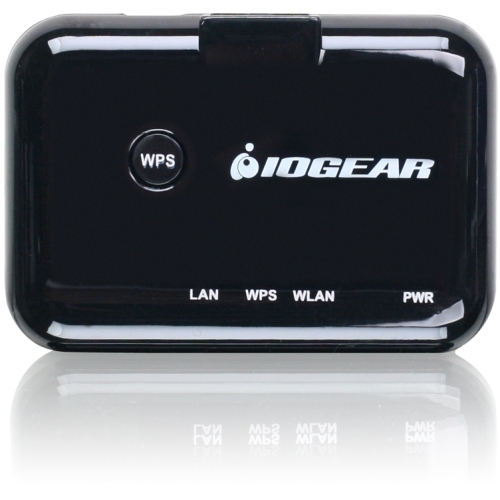

UNIVERSAL Wi-Fi N ADAPTER - ETHERNET to Wi-Fi
Get your Ethernet enabled devices such as Gaming Consoles, Blu-ray™ players, computers or HDTV connected to your wireless home network.

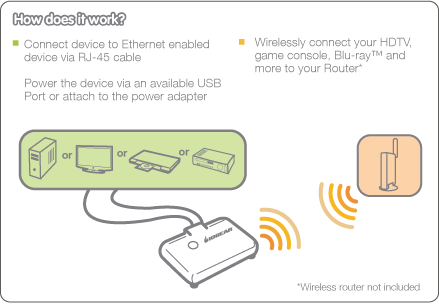

The new IOGEAR Universal Wireless-N Adapter allows you to connect your device such as a Blu-ray player, HDTV, or game console to any Wireless-N network in your home or office. The Wireless-N (IEEE™ 802.11n) Adapter works with any device with an Ethernet port. No need to purchase an USB adapter that only works with a specific brand or device. Simply connect the adapter to your device without worrying about re-wiring your home.
Using dual antennas (1T1R) this product provides data rates up to 150Mbps and reduces Wi-Fi dead zones in your wireless environment. This new standard supplies sufficient bandwidth for faster file transfer, music downloads, video streaming, on-line gaming & HD multi-media applications. In addition to the increased speed and coverage, you will be pleased to know that it is compatible with your existing 802.11b and 802.11g routers and access points. The unit also features a WPS (Wi-Fi Protected Setup™) button offering a quick and secure network setup.
Avoid long stringing cables and enjoy the freedom to place your home entertainment center anywhere and still be connected to the Internet.
FEATURES:
• Add high-speed Internet access your Ethernet enabled device such as a Blu-ray player, DVR, HDTV, game console or media PC
• Avoid long stringing cable and enjoy the freedom to access your Ethernet enabled devices wirelessly
• Push-button Wi-Fi Protected Setup™ (WPS) simplifies secure and easy wireless configuration
• Option to power by USB port in TV eliminates unattractive hanging wires
• Wi-Fi N technology improves effective throughput and range over existing 802.11b/g products
• Compatible network standards: IEEE 802.11n (up to 150Mbps) IEEE 802.11g (up to 54Mbps) IEEE 802.11b (up to 11Mbps)
• WEP, TKIP, AES, WPA and WPS2 hardware encryption schemes
• Convenient LED status indicators
• Plug & Play
REQUIREMENTS
- Operating System
- Windows® XP, Windows® Vista, Windows® 7
- Mac OS X v10.4 and above
- Linux® Fedora 10 (Kernel: 2.6.27.5-117)
- Wireless network with WPS setup
- Wireless network without WPS setup and computer
PACKAGE CONTENTS
- 1 X Universal Wi-Fi Adapter
- 1 X USB Power Cable
- 1 X Power Adapter
- 1 X Ethernet Cable
- 1 X Quick Start Guide
- 1 x Warranty / Registration Card
SPECS
| Function |
GWU627 |
| Power Consumption |
Transmit : < 380mA. ; Receive: < 250mA. |
| Operating Temperature |
0 ~ 50 celsius |
| Storage Temperature |
-10 ~ 70 celsius |
| USB Specification |
USB 2.0 |
| Humidity |
5 ~ 90% (non-condensing) |
| Transmission Power |
17 dBm |
| Frequency Band |
2.4GHz ~ 2.483GHz unlicensed ISM band |
| Modulation |
IEEE 802.11n: BPSK, QPSK, 16-QAM, 64-QAM |
| Data Rate |
IEEE 802.11n : 6, 9, 12, 18, 24, 36, 48, 54, 60, 90, 120, 180, 240, 270 and up to 300Mbps |
| Interface |
USB 2.0 |
| Security |
64-bit or 128-bit WEP/WPA TKIP |
| Management |
Windows-based Utility |
| Operating Range |
100 - 400m, depending on surrounding environment |
| Encryption |
64 bit / 128 bit WEP, TKIP, AES |
| Antenna Type |
On board chip antenna |
| Range |
Up to 320 ft |
| Dimensions |
GWU627 |
| POP Information |
| 10'' Peg Hook |
4 |
| 6'' Peg Hook |
3 |
| Unit Dimensions |
| Width |
2 7/8" |
| Height |
5/8" |
| Depth |
2" |
| Inner Pack |
| Width |
14" |
| Height |
7.5" |
| Depth |
9.5" |
| Inner Pack Qty. |
6 |
| Unit Package Dimensions |
| Width |
6.25" |
| Height |
7.5" |
| Depth |
2.25" |
| Master Carton |
| Width |
15" |
| Height |
15" |
| Depth |
10.5" |
| Master Carton Qty. |
12 |
| Weight |
| Master Carton Wt. |
10.72 lb |
| Inner Pack Wt. |
4.56 lb |
| Unit Pack Wt. |
0.62lb |
| Unit Wt. |
0.08lbs |
