Item #: IW22
MSRP: $600.00
Login


Description

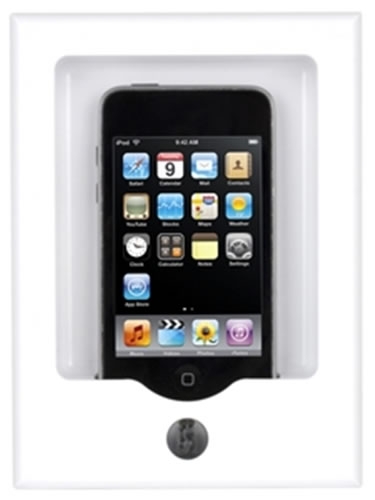

IPORT IW22 70129 IN-WALL DOCKING STATION FOR IPOD/PHONE



System Capabilities

  • Built-in preamplifier allows variable volume control via IR and RS-232.
  • Delivers long-distance balanced audio up to 500 feet (152m) from the iPort.
  • Integrated RS-232 control enables two-way communication (including iPod program metadata) and control of the iPod/iPod touch via compatible control systems.
  • Compatible with most dockable iPod models including iPod touch.
  • Charges the iPod/iPod touch while it is docked.
  • IR connection allows remote control of most iPod/iPod touch audio functions when in general control mode.
  • Delivers unbalanced video (iPod video content only, not program metadata) up to 30 feet (9m) from the iPort.
Dimensions (W x H x D):
4.75in x 6.41in x 3.5" (121mm x 163mm x 89mm)
Cut-Out Dimensions (W x H):
4in x 5 9⁄16in (102mm x 141mm)

System Components

  • iPort dock (faceplate and utility box)
  • Balanced audio sender plug-in circuit card
  • Balanced audio wall plate
  • Unbalanced video wall plate and cable
  • RS-232 control plug-in circuit card and RS-232 cable
  • Regulated power supply with USA plug

System Upgrades

Optional Balanced Video Upgrade Kit (part number 70131) delivers video up to 250 feet (76m) from the iPort.

Product Downloads at http://www.iportmusic.com/products/in-wall/IW-22

  • IW-2 Series Manual
  • IW-2 Series Connections
  • IW-2 Series Feature & Compatibility Matrix
  • IW-21/IW-22 Hi-Res Image
  • iPort IW-22 Product Sheet
  • iPort Corporate Brochure
  • Firmware Audio Receiver v1.01
