MPA-201
Highlights
Multi-purpose amplifier
Can be used alone or with other amplification
Compact design, simple controls
Design

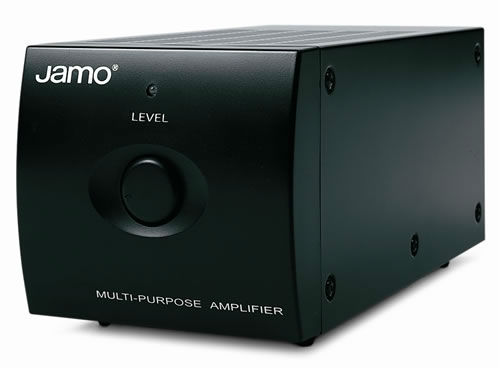

The MPA 201 is a compact, high-quality amplifier for multiple purposes. The amplifier can be set to operate in full range mode to power regular speakers or set in an adjustable low-pass mode to power passive subwoofers.
The volume control is conveniently located on the front; the remaining controls are all placed on the back panel of the amplifier.
Technology
The MPA 201 features 2 x 100 Watts (4 Ohms) amplification, or 1 x 200 Watts (8 Ohms) bridged. It is supplied with line-in/line-out connections to enable daisy-chaining of multiple MPA 201s. The amplifier can be set to operate full range (20-20,000Hz), or set in an adjustable low-pass mode for powering passive subwoofers, such as the IW 1060 SW and the IW 860 SW in-wall subs.
The MPA 201 offers a variety of high-end features:
Daisy chaining allows users to combine a number of amplifiers, if needed
Signal sensing provides automatic on/off capability
Protection circuitry prevents shorts and overheating
The MPA 201 is a small but capable amplifier that’s an excellent choice for 2-channel stereo or other uses.
MPA-Sleeve
The MPA-Sleeve is designed to hold up to 3 MPA amplifiers and comes with rack mounts and blank panels.
Specs
| System Type |
Amplifier |
| Weight (kg/lb) |
5.2 x 11.5 |
| Product dimensions (mm/in, HxWxD) |
140 x 145 x 324/5.5 x 5.8 x 12.8 |
| Finishes |
Black |
| Outputs |
2 x 100W (4 Ohm) 1 x 200W (8 Ohm) |
