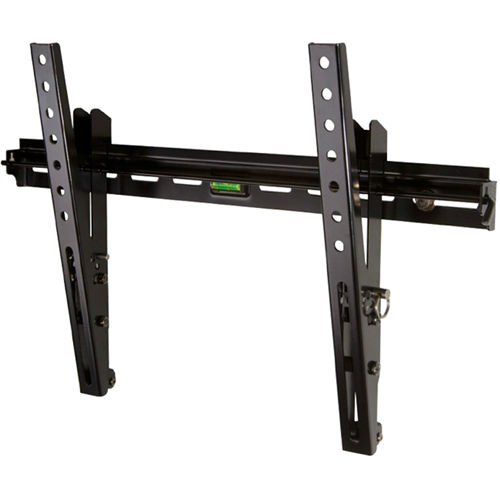

OC100T TILT MOUNT FOR 23-42" PANELS
Benefits
- Low profile offers sufficient room for cable connections and cooling while keeping TV close to the wall
- Tilt TV forward to reduce glare or for overhead installations
- Pinned tilt offers uniformity for panels mounted side-by-side
- Ideal for TVs with bottom or side-loading connectors
- Lift n' Lock™ feature offers easy, three step installation
- Horizontal wall plate requires only two holes for quick installation
- Wall plate has integrated level
- Small footprint provides ample room for power and A/V cutouts behind TV
- Vertical rails fit VESA and non-VESA TVs
- Vertical rails slide on wall plate for minor left/right repositioning
- Locking bar secures TV to mount
- Complete hardware kit included
Specifications
- Fits panels: 23-52" (58-132 cm)
- Supports up to: 100 lbs (45.4 kg)
- Mounting profile: 1.9" (49 mm)
- Universal and VESA compliant: 100x100 to 400x300
- Tilt: 0º, +5º, +10º
- Mounting: Double-stud or solid wall
- Warranty: 5 years
- Color: Black
