Peavey AUX-2 Line Input Module

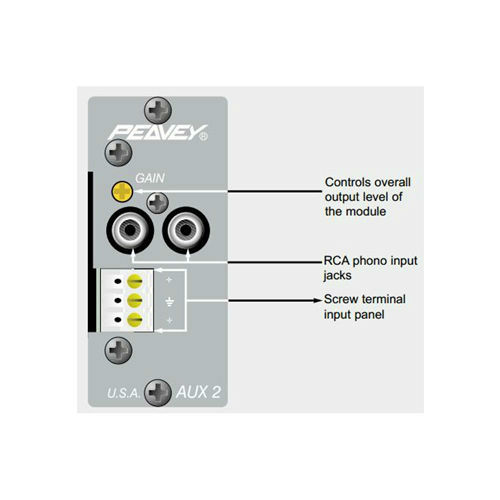

The AUX-2 is a line level input module with Euro-style and dual RCA input connectors.
The module installs at the rear panel of products accepting the standard 6-pin card-edge module connection. Align card-edge connector with top and bottom circuit board guides. Snap module into card edge socket, push flush with rear panel and install (furnished) mounting screws. |
|
Features
| RCA/screw terminal connector. |
| - Mute slave. |
| - No mute. |
Details
| Product Type |
Line Input Module |
| Gain |
0 to -60 dB |
| Input Sensitivity |
100 mV to 6.3 V (-17.8 dBu to 14 dBu) |
| Frequency Response |
20 Hz to 20 kHz ±0.5 dB |
| S/N Ratio |
90 dB |
| Muting Level |
60 dB |
| Power |
+24 V DC |
| Control |
Gain |
| Mounting |
Edge card connector |
| Load Impedance |
10k ohm |
| Dimensions (W x H x D) |
4.5"(11.43 cm) x 4.625"(11.7475 cm) x 1.75"(4.445 cm) |
| Weight Unpacked |
0.13 lbs (0.06 kg) |
| Weight Packed |
0.23 lbs (0.105 kg) |
