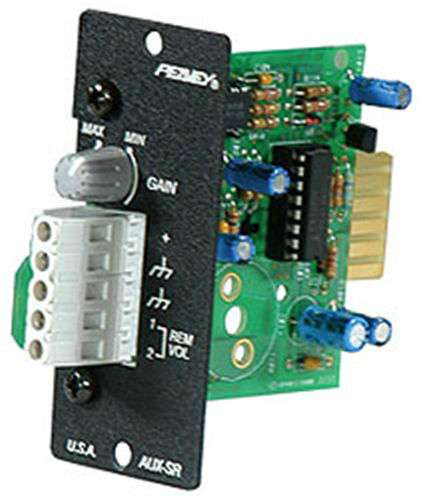

Peavey AUX-SR Line Input Module
The AUX-SR is a line level input module with Euro-style input connectors.
The module installs at the rear panel of product accepting the standard 6-pin card edge connection. Align card-edge connector with top and bottom circuit board guides. Snap module into card-edge socket, push flush with rear panel and install (furnished) mounting screws.
Features
| - Screw terminal connector. |
| - External remote control. |
| - Mute slave. |
| - No mute. |
Details
| Product Type |
Module |
| Gain |
0 dB to -31 dB |
| Input Sensitivity |
100 mV - 3.5mV |
| Frequency Response |
20 Hz to 20 kHz ±.5 dB |
| S/N Ratio |
80 dB |
| Remote Volume Range |
0 to -60 dB |
| Muting Level |
60 dB |
| Power |
+24 V DC |
| Control |
Gain |
| Mounting |
Edge Card Connector |
| Load Impedance |
10Kilohms |
| Dimensions |
4.325" x 4.625" x 1.75" (10.9855 cm x 11.7475 cm x 4.445 cm) |
| Weight Unpacked |
0.14 lbs (0.064 kg) |
| Weight Packed |
0.25 lbs (0.113 kg) |
| |
