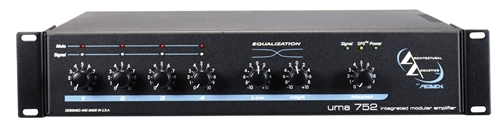

UP TO 5 CHANNEL MIXER AMPLIFIER

Our UMA series offers cost-effective solutions for small- to medium-sized jobs, but can also head up a section of a larger job. Everything you'll need is included--microphone inputs, telephone page, program inputs and now even a plug-in module port for use with any single-space MMA™ module.

• - Up to five input channels
• - Two electronically balanced Line inputs
• - One plug-in module port allows for any single-space MMA™ module
• - Rear-panel input level control for optional MMA input module
• - One electronically balanced Mic/Line input
• - Channel 4 electronically balanced output provides non-mutable output for MOH
• - SPS™ (Speaker Protection System) circuitry with indicator � 4-ohm direct output
• - 8-ohm, 70-volt and 100-volt transformer-balanced power outputs
• - AC convenience outlet (120-volt units only)
• - Optional rack mounting (rack ears included)
• - One electronically balanced Mic/Tel input - telephone input with 600 ohms transformer-balanced for paging
• - CE approved
• - Priority/Muting system with internal signal override, external switch closure capability, threshold control and front-panel indicators
• - Weight Unpacked: 23.70 lb(10.75 kg)
• - Weight Packed: 28.00 lb(12.7 kg)
• - Width Packed: 6"(15.24 cm)
• - Height Packed: 21.75"(55.245 cm)
• - Depth Packed: 17.5"(44.45 cm)
