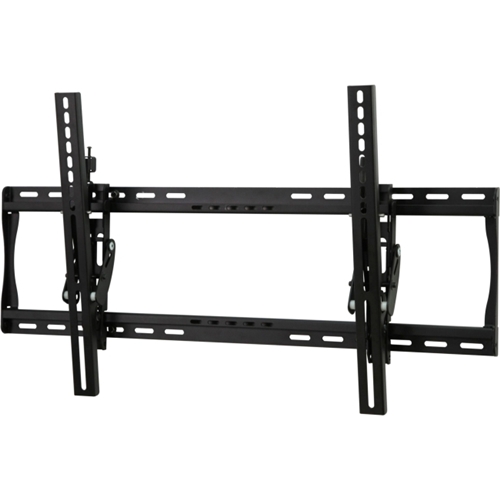

SmartMountXT™ Universal Tilt Wall Mount
For 32"-55" Flat Panel Displays
Limitless placement opportunities are delivered with speed and ease with both horizontal and vertical adjustment capability. Its slim, open wall plate architecture delivers flat panel display placement flexibility and enables easy behind-the-display access along with cable management. Hex pin screw installation and optional Increlok™ Tilt technology complete the ultimate secure, low profile flat panel installation.
- Low profile design holds display 1.69”-6.55"(43-166mm) from the wall
- Universal Display Adapters easily hook onto wall plate for fast installation
- Up to 1” of Vertical adjustment
- Up to 23” of Horizontal adjustment
- 15/-5° of tilt with optional IncreLok™ technology
- Open Wall Plate design allows for total wall access, increasing electrical and cable management options
- Fits flat panel displays with mounting hole patterns up to 723x433mm (28.46”Wx17.04”H)
| Minimum to Maximum Screen Size: |
32" to 55" |
| VESA Pattern: |
600 x 400 |
| Mounting Pattern: |
723 x 433mm (28.46 x 17.04") |
| Weight Capacity: |
120lb (54.0kg) |
| Color: |
Black |
| Finish: |
Powder Coat |
| Security Features: |
Non-Security Hardware |
| Tilt: |
+15 / -5 |
| Increlock Increments: |
-5, 0, 5, 10, 15 |
| Distance from Wall: |
1.69 - 6.55" (43 - 166mm) |
| Product Dimensions: |
330.87 x 18.00 x 1.69 - 6.55" (784 x 457 x 43 -166mm) |
| Ship Dimensions: |
10.125 x 3.5 x 32.5" (257.2 x 88.9 x 825.5mm) |
| Shipping Weight: |
11lb (4.99Kg) |
