VMPL50A
Tilting Wall Mount
For 32" – 60" flat-panel TVs
Technical Drawing

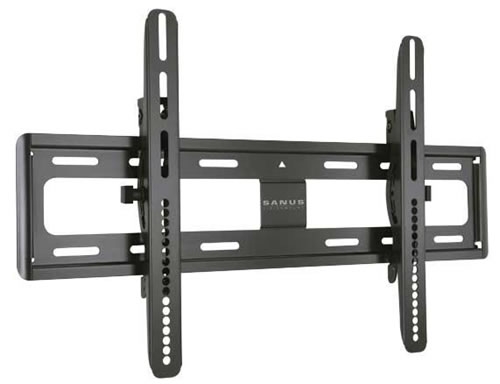

The VisionMount VMPL50A is a tilting wall mount for 32" – 70" flat-panel TVs. Sanus Systems’ Virtual Axis™ tilting system provides easy adjustment of viewing angle with just the touch of a finger. ProSet™ post-installation height and leveling adjustments ensure TVs are always perfectly positioned after hanging. Its solid heavy-gauge steel construction offers a sleek, high-tech look while providing strength and durability. Adjustable TV brackets offer lateral shift ability to allow perfect TV placement, even with off-center wall studs. TV is positioned just 1.8" from the wall for a clean, low-profile appearance. Universal mounting pattern fits virtually any LCD or plasma TV up to 150 lbs.
Specs
| Product Width: |
30.00" / 76.2 cm |
| Product Height: |
18.50" / 46.99 cm |
| Product Depth: |
1.80" / 4.57 cm |
| TV Size Range: |
32.00" - 70.00" / 81.28cm - 152.4cm |
| Maximum TV Weight: |
150.00 lb / 68.18 kg |
| Mounting Pattern: |
Universal
|
| Tilt: |
8.50° / - 10.00° |
