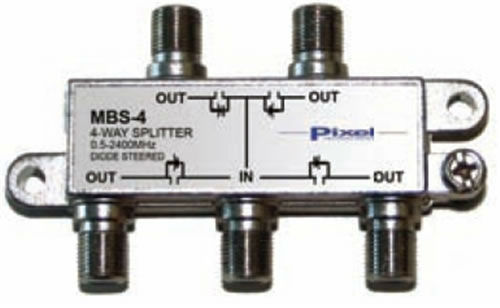

Model: MBS-4

Wide Band 4-Way Passive Splitter (For AM/
FM, HD Radio, Broadcast TV, Cable TV,
Satellite Radio and TV)

As opposed to standard splitters, this signal splitter has been specially designed to pass, with low-loss, signals from the bottom of the AM broadcast band (500 kHz) to beyond the top of
the satellite radio band (2.4 GHz). With such a wide pass-band it
is very useful for implementing whole-house and commercial RF
distribution networks of signals used in all types of entertainment
systems.
It is also designed to pass DC from any of its output ports to the
input port via protection diodes that prevent DC feedback.
It can be used in tandem with model WBA-12 ultra-wideband amplifier to implement a lossless splitter.
Insertion loss: 12 dB
Diode Protection: All Ports
