General Information

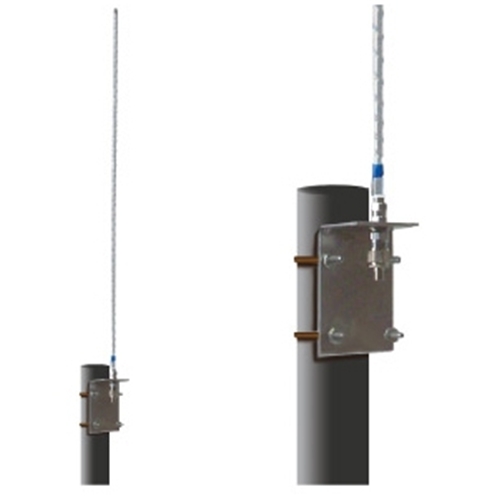

| | Manufacturer: | Pixel Technologies | | Manufacturer Part Number: | AFHD-4 | | Manufacturer Website Address: | http://www.pixelsatradio.com | | Brand Name: | Pixel | | Product Model: | AFHD-4 | | Product Name: | AFHD-4 Antenna | | Product Type: | Antenna | | Packaged Quantity: | 1 | Technical Information
| | Directivity: | Omni-directional | | Maximum Antenna Range: | 90 Mile | | Frequency Band Type: | VHF | | Frequency: | - 88 MHz to 108 MHz
- 550 MHz to 1.75 GHz
| | Antenna Gain: | 60 dB | Interfaces/Ports
| | Connector Type: | F-Type | Physical Characteristics
| | Height: | 48" | Miscellaneous
| | Application/Usage: | Radio Communication | | Package Contents: | - AFHD-4 Antenna
- 1 x L-Mounting Bracket
- 1 x Weather Boot
- 1 x Surge Protector
- 2 x 20 dB Attenuator
- 2 x 10 dB Attenuator
- 2 x 3 ft RG-6 Cables
- 1 x AM/FM Band Separator
- 2 x U bolts with Washers and Nuts
- 2 x Pole Mount Saddle Brackets
- 4 x Mounting Screws with Plastic Inserts
- 1 x F-Female to Twin Lead Adaptor
|
