Bluetooth Source Kit BSK1
The BSK-1 Bluetooth® Source Kit enables a portable media player, smartphone, or other device equipped with Bluetooth® wireless technology to transmit audio content to any multiroom audio system.
The BSK-1 kit can be used as a global source for system-wide access, or as a Local Source for independent use by a specific room when used with a C-Series system. Local source use with C-Series controllers provides additional automation features automatically turning on the audio, selecting the BSK-1 source input and setting the volume in a room configured as the 'Primary Zone' via SCS-C5 software.

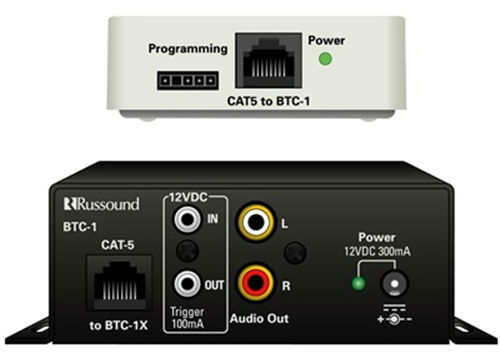

The BTC-1x Remote Transceiver is wired with a single CAT-5 cable up to 300' allowing for optimum placement in different system environments. It also features a class 2 transciever with a 49' (15m) range and the Advanced Audio Distribution Profile (A2DP) ensures high quality stereo audio.
The BTC-1 serves as a streamlined termination point for power, audio and 12VDC trigger connections to the host audio system.
Standard Features
- Add Bluetooth audio streaming to a multiroom audio installation
- Remote transceiver for optimum range placement
- Free custom naming software for easy identification
| Shipping Dimensions |
9.0" (W) x 7.0" (H) x 8.0" (D)
(22.9 x 17.8 x 20.3 cm) |
| Shipping Weight |
0.0 lbs (0.0 kg) |
| Audio Input Connectors |
2 RCA |
| CAT-5e Connection |
RJ-45 (T568A Standard) |
| Frequency Range |
2,400-2,483.5 MHz |
| Max Cable Length |
300' (CAT-5) BTC-1x to BTC-1
25' (RCA cable) BTC-1 to Controller |
| Power Requirement(s) |
BTC-1X Remote Transceiver: supplied by BTC-1 via CAT-5
BTC-1 Termination Box: 12VDC 300mA |
| Trigger Input(s) |
12 VDC |
| Trigger Output(s) |
12VDC 100mA Max |
