RUSSOUND P75 2-CHANNEL DUAL SOURCE 75 WATT AMPLIFIER
P75 Two-Channel, 75W, Dual Source Amplifier
Power for your music
Audio amplifiers are the muscle behind every home music system. Russound puts great pride and effort into building stereo and multi-room amplifiers that supply years of problem-free service. Russound engineers embarked on designing our amplifiers to meet the demands of multi-room audio systems: seamless integration, bulletproof reliability and astonishing fidelity. Built to complement an extensive array of audio systems, these versatile products deliver outstanding performance under the most demanding conditions.

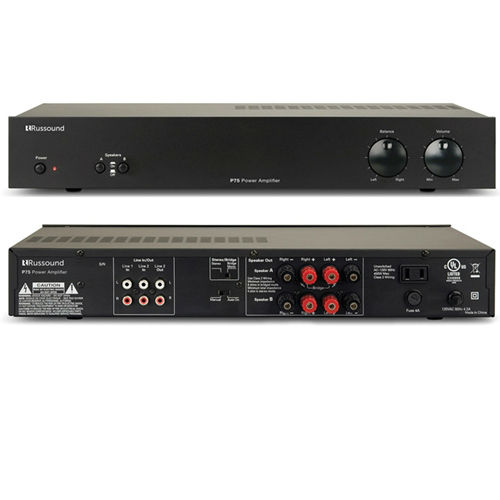

The P75 is a 2-channel dual source power amplifier with autosource switching. It features two audio line inputs with a loop out to another zone, receiver, or device from Line 2 source. This amplifier can be used for power upgrades in specific zones, for speaker selector or volume control systems.
The P75 is a Class A/B amplifier rated at 75 watts per channel into 4 ohms, and 60 watts into 8 ohms. With the Stereo/Bridge Mono switch in Bridge Mono position, both amplifier channels are combined for a higher powered mono output. In Bridge mode the X75 is rated at 160 watts of power into a single 8 ohm load.
Not available to countries requiring CE certification. 110v only.
- Built for multi-speaker applications with volume controls
- Automatic switching between two sources with signal sensing
- Front panel volume and balance controls
- Channels are bridgeable to create one channel with 160 watts of power
- Shipping Dimensions: 10.5" (W) x 4.5" (H) x 20.0" (D), (26.7 x 11.4 x 50.8 cm)
- Shipping Weight: 11.5 lbs (5.2 kg)
- Crosstalk: > 70dB @ 1 kHz
- Frequency Response: 10Hz to 30kHz +0.0dB/- 3.0dB @ 8 ohms, 1 W
- Input Sensitivity: 900mV for 50W at 8 ohms
- Power Output: 60W per channel at 8 ohms
- Power Requirement(s): 120VAC 60Hz 4.2A
- Signal to Noise Ratio: 100dB A-weighted
P75 Product Manual: P75_Product Manual.pdf
P75 Product Brief: P75_Product Brief.pdf
