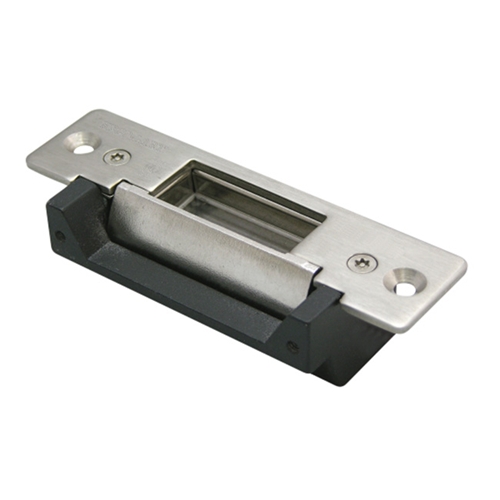

Electric Door Strike for Metal Doors, Fail-secure or Fail-safe, 12VDC

The SECO-LARM® Electric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. Combine with an optional SECO-LARM® digital keypad for keyless high security.

• Field-selectable for fail safe or fail-secure operation
• Can be used with virtually any cylindrical door locking system
• Can use with an optional digital keypad
• Suitable for office-type applications
• Reversible non-handed design fits either right hand or left-handed doors
• Shallow design for use with most metal doors
• Powered by a solenoid, not a buzzer coil
• Static strength – 1,000 lbs. (454kg)
• Stainless-steel keeper for strength and long life
• Non-polarized connection
• Tested to 250,000 cycles (UL Tested)
• Optional lip-extension brackets available:

SPECIFICATIONS

Operation: Fail-secure or Fail-safe

Operating Voltage: 12VDC

Current Draw: 280mA

Static Strength: 1,000 lbs. (454kg)

Dynamic strength: 50-ft-lbs. (6.91 m-kgs)

Operating Temperature: 14°F~113°F (-10°~45° C)

Dimensions: 4-7/8"x1-1/4"x1-1/4" (124x32x32 mm)
