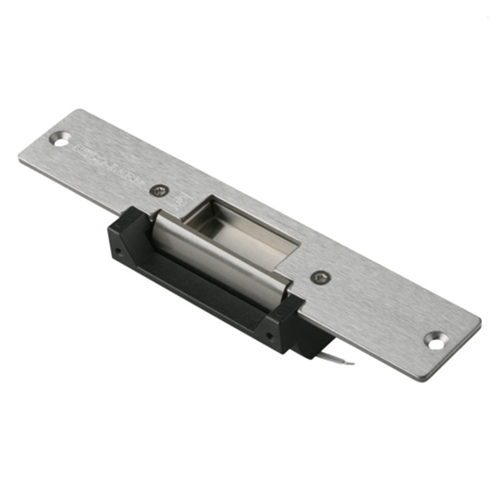

Electric Door Strike for Wood Doors

• Field-programmable in just seconds for fail-secure or fail-safe applications
• The SECO-LARM Electric Door Strikes convert cylindrical lock sets to an electronic access controlled locking system
• Can be used on virtually any cylindrical door locking system
• Use of an optional digital keypad with the unit assures high security without the need for a key
• Easily connects to SECO-LARM's Electronic Keypads
• Suitable for office-type applications
• 7-15/16" x 1-7/16" x 1-1/4" (202x36x32 mm)
• Symmetrical-sized. Reversible for right-hand or left-hand doors
• Shallow design for use with most wood doors
• Powered by a solenoid, not a buzzer coil
• Jaw strength 2,000-lb.
• Stainless steel lip (keeper) for strength and long life
• Non-polarized connection. Wires can be reversed
• Current draw 250mA@12VDC
• Tested to 1 million cycles
• CE approved.

SPECIFICATIONS

Operation: Fail-secure or fail-safe

Operating Voltage: 12 VDC

Current Draw: 250mA

Jaw Strength: 2,000-lb

Operating Temperature: 14°F~113°F (-10°~45° C)

Dimensions: 7-15/16" x 1-7/16" x 1-1/4" (202 x 36 x 32 mm)
