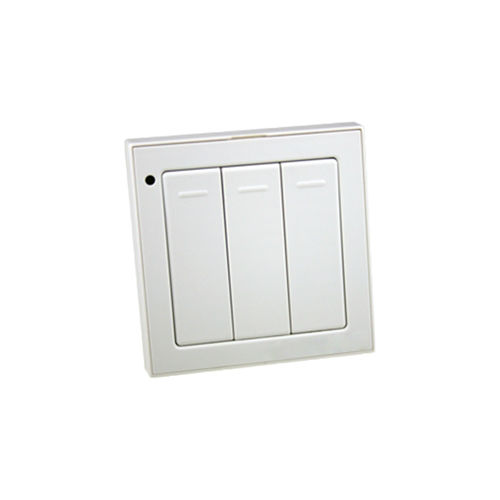

Wireless 3-Button Switch
Battery-operated, innovative and versatile 3-button wireless switch suitable for home and industrial use. Easily set up to control other ZigBee devices such as load switches, lights, alarms, etc. Sleeps until activated to extend battery life up to 3 years. Simply mount via slot on back or place where convenient.
ZBWS3 acts as an end device in the ZigBee netwok certified under the HA profile.
- Wireless - easy to install
- Surface mount installation using two mounting holes or double-sided tape
- Utilizes the ZigBee HA profile
- Controls up to 3 devices.
- 1-Year Warranty by SimpleHomeNet.
This versatile switch is available in a single, dual or triple configuration and operates from two AAA alkaline cells for up to 2 years. Use it to control any ZigBee® device capable of on/off control such as the Smartenit or other load controllers. The device can be mounted on a wall or used as a portable remote controller anywhere in the range of the home automation network. When not in use, the device goes to sleep to conserve battery life until any of its switches is pressed. Each button can be programmed (using a ZigBee unit capable of switch configuration) to be on/off or toggle.
Benefits:
- Remotely controls any ZigBee® device that uses the on/off cluster. This includes lights, pumps, pool heaters, electric vehiclechargers, air conditioners, etc.
- Can be bound easily to control devices even without the use of a network controller.
- Uses ZigBee®, a wireless RF protocol that is rapidly becoming the standard for energy management. Enables appliances to become part of the smart ecosystems of tomorrow.
- Small size and wireless operation means easy retrofit ability and low installation cost. Use with ZigBee® appliances to eliminate copper conduits otherwise needed for switch wiring.
- Tested to FCC standards.
- ZigBee HA profile certified.
SPECIFICATIONS:
Electrical & Environmental
Operating Voltage: Two AAA batteries (1.5V)
Communication
Range:
Up to 100 ft. indoors, 200 ft LOS.
Temperature: -10—55 degrees Centigrade
Humidity: 95% RH
Mechanical
Size: 3.25” L X 3.25” W X 0.5” H
Weight: 4Oz.
Mounting: Can be mounted at user’s convenience through provided surface adhesive mounts
Operation
ZigBee function: ZigBee Pro End device
Smartenit Enhances Smart Grid Possibilities
What is the Smart Grid?
The Smart Grid came about as a solution to increased energy consumption and its related rising costs. It has been adopted worldwide as a system that allows consumers and utilities to share information about power usage. Monitoring energy usage can reduce the threat of brownouts and blackouts that cost billions of dollars annually and create terrible risk to people during heat waves and freezing weather.
The Smart Grid provides consumers with the information they need to monitor and lower their utility bills and to manage their energy consumption in real-time. Two-way communication allows utility companies to be proactive and avoid power-shutoffs by controlling smart appliances if the homeowner has agreed, or opted-in, to participate. Since energy usage costs more when the demand is highest, this can translate to great savings for the consumer.
A Home Area Network (HAN) of Smart appliances that support the ZigBee® Smart Energy standard connect the consumer with the Smart Grid. This standard ensures integration and interoperability with hundreds of smart energy devices from many manufacturers. Appliances can be “smartened” and joined to the HAN by connecting or plugging them into a smart plug/outlet or load controller.
|
What is Smartenit's role?
Smartenit is among the first to develop products that communicate with the Smart Grid and are meaningful to both the consumer and the utility for monitoring and managing energy consumption securely with reliability and convenience. Smartenit’s load control devices measure power consumption and are aware of prices from the utility. This allows the consumer to initiate a power-down of their appliances based upon certain price points, usage, time or in response to a demand response event from the utility. Smartenit is the first to offer a smart energy multiple-relay load controller as a solution to control dual-speed appliances such as pool pumps.
About ZigBee
ZigBee is the global wireless language connecting dramatically different devices to work together and enhance everyday life. The ZigBee Alliance is a non-profit association of more than 370 members driving development of ZigBee wireless technology. The Alliance promotes world-wide adoption of ZigBee as the leading wirelessly networked, sensing and control standard for use in consumer electronic, energy, home, commercial and industrial areas. For more information, visit www.ZigBee.org. |
