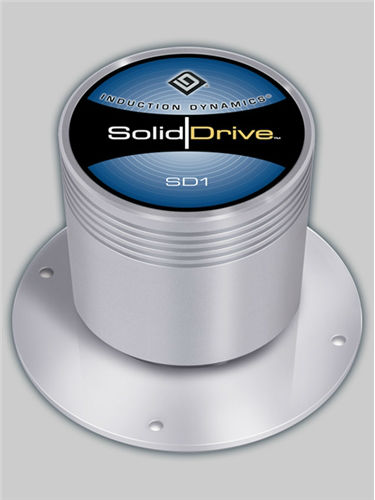

SD1sm SolidDrive SD1sm
- Proprietary dual-voice coil technology in a durable, aluminum enclosure delivering high power handling and sensitivity across multiple substrates.
- Symmetrically opposed neodymium magnets convert audio signals into acoustical energy for any rigid surface including glass, drywall, ceramic and wood.
- Hidden planar-source audio technology evenly distributes acoustic energy throughout the listening space.
- Proprietary behind-surface mounting technologies ensure maximum visual appeal.
- 88.5 Max SPL (drywall) and 120° dispersion pattern across the upper registers of the frequency spectrum.
- Wood, laminate & composite (SD1sm) included accessories: direct-screw aluminum mounting base.
- Optional accessories include passive EQ modules for drywall, glass or wood; 20 Watt metal junction box for 25, 70.7 & 100 Volt applications (AC-JB20-XFMR) and Heat Sink Fins
- For extended frequency response, couple SolidDrives with SW7 or SW8 subwoofers.
- SolidDrives operate in a virtually friction-free environment and are engineered for infinite life. SolidDrives come with an industry-leading 7-year warranty.
- UL approved 1480 and 2043.
|
| |
| Frequency Response(-3 dB) |
80 Hz - 10 kHz |
| Low Frequency(-10 dB) |
60 Hz - 15 kHz |
| Sensitivity |
73.5 dB |
| Power Capacity RMS |
30 W |
| Max SPL dB @ 1 M |
88.5 dB |
| Nominal Impedance |
8 ohm |
| Connections |
Wire lead with screw connector block |
| Height |
51.3 mm (2.02 in) |
| Diameter |
58.4 mm (2.30 in) |
| Weight |
0.54 kg (1.2 lb) |
| Shipping Weight |
0.9 kg (2.0 lb) |
| Colors |
SD1- Chrome, Titanium
SD1g- Chrome, Black, Titanium
SD1sm- Chrome, Black, Titanium |
|
