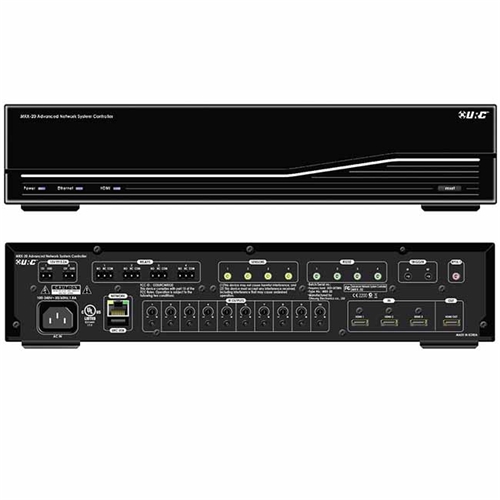

TOTAL CONTROL MRX-20 ON-SCREEN
ADVANCED NETWORK CONTROLLER
Network controller with dynamic onscreen interface for controlled entertainment and home automation
URC Total Control Links
The MRX-20 brings you and your family a gorgeous TV screen interface for easy control of your home system typically without interrupting what you are watching on TV. This controller provides simple to navigate on-screen menus for viewing and controlling things not only on the TV such as cable, BluRay, movies and more, but also home systems such as music, security, HVAC and beyond.
With compatible URC gyroscopic remotes, you can move your hand and the cursor will follow on screen, and use specific buttons for control and access as you wish. Pull up your favorite channels and a clear overlay menu for various functions will appear right over top of what youre currently watching. Then do things such as choose music from various components, turn on and off house lights and more right from your couch.
Best of all? This controller is equipped with loads of ports so that your URC professional installer can expand your system down the road.
Check out the video introduction from our CEDIA 2014 booth of our all-new MRX-20
with on-screen non-disruptive display:
Key Features
-
Provides an On-Screen Overlay which allows control of the system from one or multiple displays (with more MRX-20's added to the system).
-
A “Quickbar” for Quick Access to a devices commands.
-
Favorite Channels can be overlaid with channel artwork over the currently used source.
-
Camera Pop-Up's can be triggered from any macro (including Sensor-Macros) with custom macros available to quickly trigger from the overlay.
-
Can be controlled using URC's TRG Remote Controls using uMotion Technology (Gyroscopic)
-
Stores and issues commands and macros via IR, IP, RS-232, Relays and Triggers
-
-
Routes commands to any
System Controller (include MRX-10's and other MRX-20's) on the network.
-
Provides full automation by URC Sensors, Event Timers, Alarm Clocks, Sleep Timers, and “Device Events”
-
-
-
Rack-Moutnable (requires optional RMK-2 rack ears)
Specifications
-
At least one
Master Controller is required on every system. An MRX-10 or MRX-20 is required in all Total Control systems. Multiple MRX-10/20s may now be used in one system, as long as one controller is designated as the “Master.”
-
Video: Three (3) HDMI inputs, one (1) HDMI output. Up to 1080p compliant and works with today’s popular high resolution sources. (Note: will not currently pass through a 4K signal)
-
Network: One (1) 10/100 Ethernet port
-
IR: Ten (10) adjustable IR ports powered by independent IR Engines for simultaneous use
-
RF (2.4Ghz RF) Not Included: To communicate with URC's
TRC-780,
THZ-100 and other URC RF Products, a
TRF-UZ1 must be added.
-
RF Frequency: For TRG-100 and TRG-200, 2.4
GHz
-
RF Range: For TRG-100 and TRG-200, 50 to 100 feet, depending upon the environment
-
USB: 1 (for future use)
-
DC Trigger Output: Two (2) 12V/0.2A port OUT (On, Off or Momentary)
-
Relays: 4 (NO, NC or Momentary)
-
RS-232: 4 ports (support TX, RX and GND two-way communication)
-
Sensor Input(s): 4 ports (use with third-party or
URC Sensors)
-
Power: AC 100-240V 50/60Hz (detachable power cord)
-
Weight: 7.0 lbs
-
Dimensions: 17 1/8” (W) x 3 3/4”(H) x 9” (D) (RMK-2 optional rack mount ears available)
-
Warranty: Two year USA Limited Warranty
Rack MountingPlease note that Rack Mounting kits are NOT included with URC products. If you wish to rack mount items such as the MRX-20, MRX-10, SNP-1, SNP-2, DMS-100 and DMS-1200 you must purchase a Rack mounting kit from URC. There are rack mounting kits for 1U (RMK-1), 2U (RMK-2) and 3U (RMK-3) case sizes.
A Note about 3rd Party ModulesAll URC Modules have been ported to the new MRX-20 Interface. However, it is up to 3rd Party Module Developers to develop support for the MRX-20. Not all 3rd Party Modules may be available at this time. Contact your Module Developer for more information on their timelines for adoption.
The MRX-20 Integration GuidesBe sure to read through the extensive MRX-20 Integration Guides on the MRX-20 and its various features!
- Compatible with URC Gyroscopic Remote Controls models TRG-100 (basic features) and TRG-200 (additional features / buttons)
- TRG-100/200 are sold separately
- RF Range: For TRG-100 and TRG-200, 50 to 100 feet depending upon the environment (optional TRF-GE1 Extender can provide greater distance)
- An MRX-10 or MRX-20 is required in all Total Control systems. Multiple MRX-10/20s may be used in one system, as long as one controller is designated as the "Master."
- Off-site professional installer programming via the internet when system is registered
