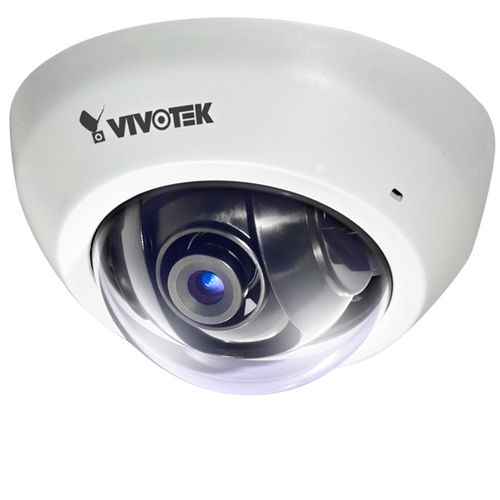

1MP Ultra-mini Dome Network Camera FD8136
(White)



VIVOTEK FD8136 is the world’s smallest network fixed dome camera. With installation as easy as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation quick and easy.

The FD8136 features a megapixel sensor enabling viewing resolution of 1280x800 at 30 fps, and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications.

Designed with selectable focal lengths, FD8136 can be used in various environments, including but not limited to offices, elevators, campus, chain stores, boutique stores and health care facilities. At the size of only 90 mm in diameter, VIVOTEK FD8136 is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. The package also includes VIVOTEK's 32-channel recording software. With all this and more, the FD8136 is the ideal solution for your surveillance needs.



Features

  • 1-megapixel CMOS Sensor
  • Up to 30 fps @ 1280x800
  • Real-time H.264, MPEG-4 and MJPEG compression (Triple Codec)
  • Built-in 802.3af Compliant PoE
  • Built-in MicroSD/SDHC Card Slot for On-board Storage
  • compact and Stylish Design
  • Easy Installation





System Information
CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 16 MB
  • RAM
  • 128 MB
  • Camera Features
    Image sensor
  • 1/4" progressive CMOS
  • Maximum Resolution
  • 1280x800
  • Lens Type
  • Fixed
  • Focal Length
  • f = 2.5 mm (FD8136-F2)
  • f = 3.6 mm (FD8136-F3)
  • f = 6 mm (FD8136-F6)
  • Aperture
  • F2.0 (FD8136-F2, FD8136-F3), F1.8 (FD8136-F6)
  • Field of View
  • H=89.9°, V=55.8°, D=108.8° (FD8136-F2)
  • H=61°, V=38°, D=73° (FD8136-F3)
  • H=35.5°, V=22.6°, D=41.6° (FD8136-F6)
  • Shutter Time
  • 1/5 sec. to 1/32,000 sec.
  • Minimum Illumination
  • 0.45 Lux @ F1.8, 50 IRE ( Color )
  • Pan range
  • 45°
  • Tilt range
  • 33° ~ 90°
  • Pan / Tilt / Zoom
  • ePTZ
  • 16x digital zoom ( 4x on IE plug-in, 4x built-in )
  • On-board Storage
  • MicroSD/SDHC card slot
  • Video
    Compression
  • H.264, MPEG-4 & MJPEG
  • Maximum Frame Rate
  • H.264: 30 fps at 1280x800
  • MPEG-4: 30 fps at 1280x800
  • MJPEG: 30 fps at 1280x800
  • Maximum Streams
  • 2 simultaneous streams
  • S/N Ratio
  • Above 39 dB
  • Video Streaming
  • Configurable video cropping for bandwidth saving
  • Image Settings
  • Adjustable image size, quality, and bit rate
  • Time stamp and text caption overlay
  • Flip & mirror
  • Configurable brightness, contrast, saturation, sharpness, white balance and exposure control gain
  • BLC (Backlight compensation)
  • Supports privacy masks
  • Audio
    Compression
  • GSM-AMR
  • G.711
  • Interface
  • Internal microphone
  • Effective Range
  • 5 meters
  • Network
    Users
  • Live viewing for up to 10 clients
  • Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
  • Interface
  • 10 Base-T / 100BaseTX Ethernet (RJ-45)
  • ONVIF
  • Supported, specification available at www.onvif.org
  • Intelligent Video
    Video Motion Detection
  • Triple-window video motion detection
  • Alarm and Event
    Alarm Triggers
  • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
  • Alarm Events
  • Event notification using HTTP, SMTP, FTP, NAS server
  • General
    Connectors
    • RJ-45 for Network/PoE connection
    • Terminal block*2 for digital input
    • MicroSD/SDHC card slot
    LED Indicator
  • System power and status indicator
  • Power input
  • 802.3af Power-over-Ethernet (Class 1)
  • Power consumption
  • Max. 3.84 W
  • Dimensions
  • Ø: 90 mm x 50 mm
  • Weight
  • Net: 143 g
  • Safety Certifications
  • CE C-Tick FCC ( Class B ) LVD VCCI
  • Operating Temperature
  • Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
  • Warranty
  • 24 Months
  • System Requirements
    Operating System
  • Microsoft Windows 7 / Vista / XP / 2000
  • Browser
  • Mozilla Firefox 7 - 10 ( Streaming only )
  • Internet Explorer 7.x or 8.x
  • Other Players
  • VLC: 1.1.11
  • QuickTime: 7 or above
  • Real Player 10.5 or above
  •
