70m/230ft HDBaseT 1UTP 2W IR & RS232

Designed with the needs of the installer in mind, this more affordable HDBaseT solution shares many of the strengths as full HDBaseT, such as a ‘one-cable’ distribution method, the same signal stability and resistance to interference, but removes Ethernet distribution and reduces signalling rate and resolution over long distances, while still allowing fully controllable HD distribution over a single cable run.

Transmitter and Receiver baluns also contain protection against ESD (electrostatic discharge) to further stabilise transmission with LEDs on the unit housing for clear power and video signal indication. 5v mains supply but receivers may also be powered through the USB port of the display using Wyrestorm USB to 5v power adapter (both power adapters included)

Additionally, the EX-1UTP-IR-70 is fully cascadable, with transmission lengthened by connecting to multiple 70m/230ft extender sets for increased distribution and even greater flexibility, whatever the installation environment.

• HDBaseT extenders capable of 1080p HD @60Hz and HD multichannel audio transmissions up to 70m (230ft) under perfect conditions*

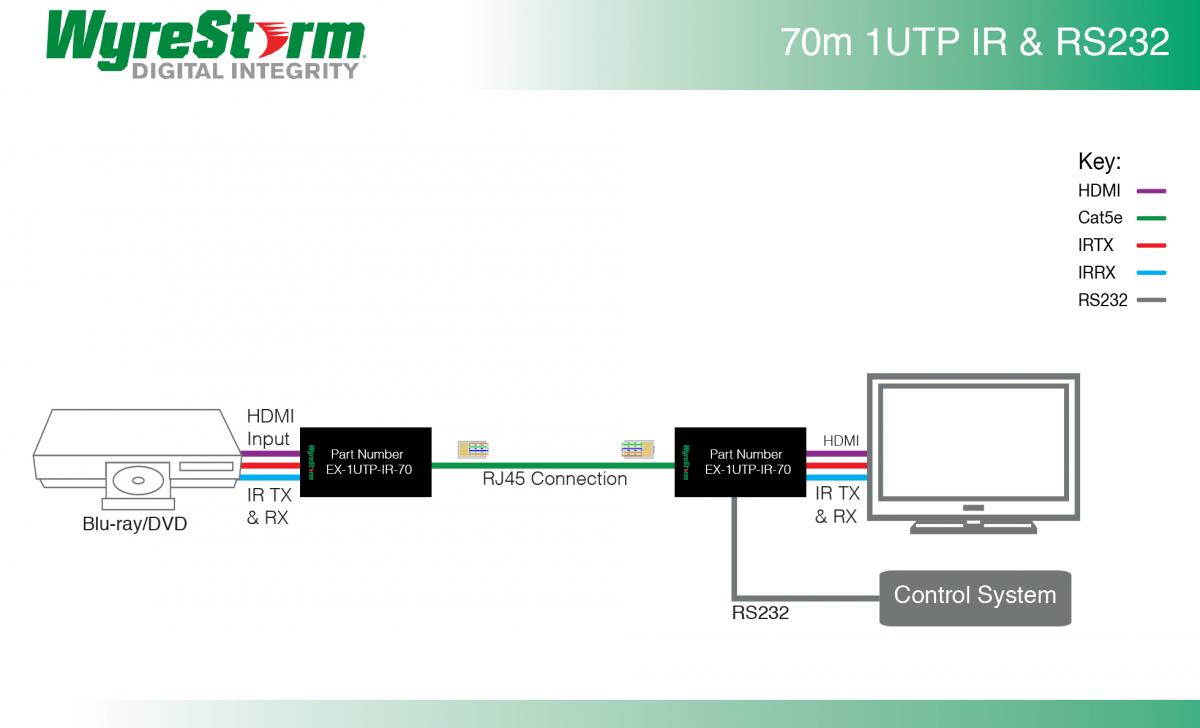

• Transmits discrete wide-band two-way IR control signal together within the HDMI signal over a single Cat5ei/6/7 cable.
• Centralized RS232 for firmware updates or third party control with open source integration protocols available for market leading control systems
• Fully supports 3D applications (frame sequential – Blu-ray and Interlaced Stereoscopic – Satellite/cable broadcasts)
• Supports 36bit Deep Colour
• HDMI V1.4
• Cable termination follows IEEE-568B standards
• HDCP compliant
• Automatically adjusts feedback, equalization and amplification of signal for easy installation.
• LED indications for visual power and video signal status.
• Baluns powered by 5v mains adapter or with the 5v USB power cable (both included) to solve space or power availability problems as well as being more energy efficient as the extenders are only powered when connected devices are turned on.
• Fully cascadable to further lengthen transmission and increase your distribution capabilities.

*Perfect transmission conditions - cable run within specified distance range of product, no electrical interference, the use of straight cable runs with no bends or kinks and no patch panels or wall outlets used. Please be advised that the presence of any of these factors in your installation may compromise bandwidth and signal strength.

For longer transmission distances, LAN control and Ethernet pass-through, please see our full range of HDBaseT matrices, transmitters, receivers and extender sets.

• 1 x Wyrestorm EX-1UTP-IR-70 TRANSMITTER balun
• 1 x Wyrestorm EX-1UTP-IR-70 RECEIVER balun
• 1 x Printed quickstart installation guide (also downloadable from this product main page)
• 2 x pairs of balun mounting brackets
• 2 x 5VDC power supply
• 2 x USB to 5V power adapters P/N: CAB-USB-5V70
• 1 x IR TX Emitter (small/round) for attachment to Input device
• 1 x IR RX Receiver (larger/rectangular) for attachment to Display - IR frequency range: 940nm IR Frequency: 38KHZ
