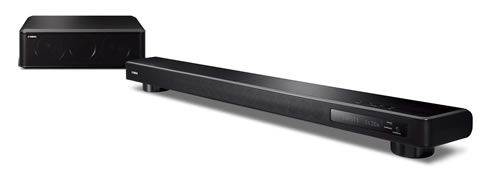

YSP-2200 Digital Sound Projector



  • Low profile soundbar allows positioning in front of most TVs for a neat and compact AV system
  • Subwoofer can be placed vertically or horizontally
  • Digital Sound Projector technology provides true surround sound for maximum enjoyment
  • Built-in 132W digital amplifier
  • 11 CINEMA DSP programs: 3 Movie, 3 Music, 5 Entertainment including improved Game program
  • HD Audio format decoding
  • 1080p-compatible HDMI (V.1.4a with 3D and Audio Return Channel, 3 in/ 1 out)
  • IntelliBeam Automated System Calibration
  • Dock port for adding optional YID-W10 wireless iPod transmitter, YDS-12 iPod dock or YBA-10 bluetooth receiver



This extremely convenient Digital Sound Projector™ is low profile enough to fit neatly in front of a TV and is 3D compatible (HDMI V.1.4a).

Features

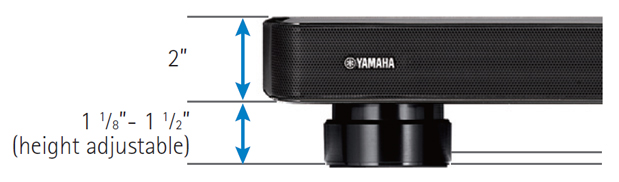

Low Profile and Height Adjustable

The YSP-2200 is only 3 1/8" high, so you can place it in front of most flat screen TVs without blocking the picture. The height-adjustable feet let you achieve optimum positioning. The feet can also be removed, reducing the height of the speaker to only 2'.

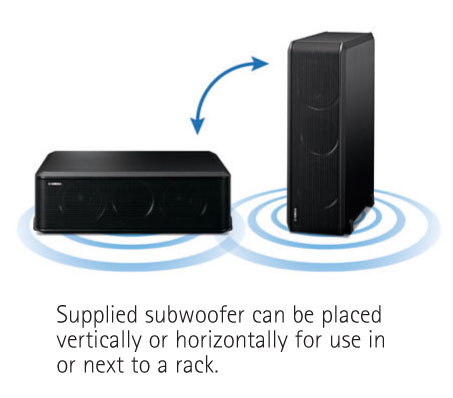

Flexible-Placement of Subwoofer

The powerful yet slim subwoofer can be used vertically or horizontally, so you can place it inside or outside a rack. The sound has been tuned to perfectly match the YSP-2200.

Digital Sound Projector™ Technology

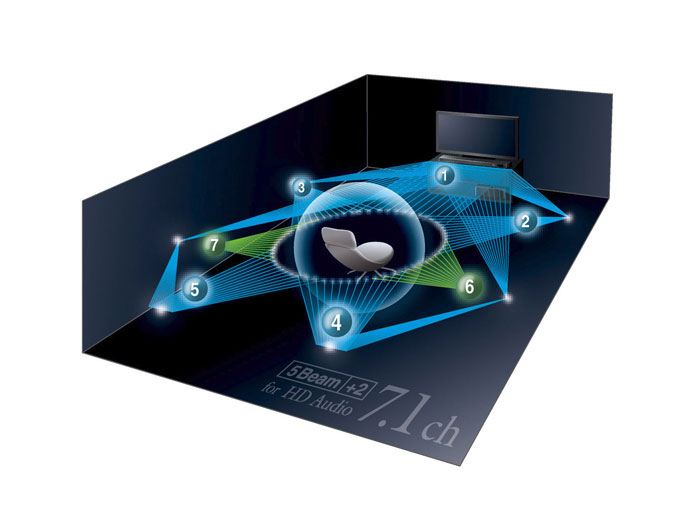

The YSP-2200 applies this sophisticated technology to precisely control the orientation of the sound by focusing it through multiple beams. The center channel sound is heard directly, while sounds from other channels are heard after reflecting off walls. The result is true multi-channel surround sound that sounds just like a multi-speaker system – but without the need for extra speakers!

Designed for High Quality Sound

With a built-in 132W digital amplifier that efficiently drives all channels, an aluminium body that damps vibrations, precision sound tuning and optimum subwoofer matching, the YSP-2200 delivers 7.1-channel surround sound with outstanding clarity and linearity. The design is more elegant and less obtrusive than multiple speaker boxes.

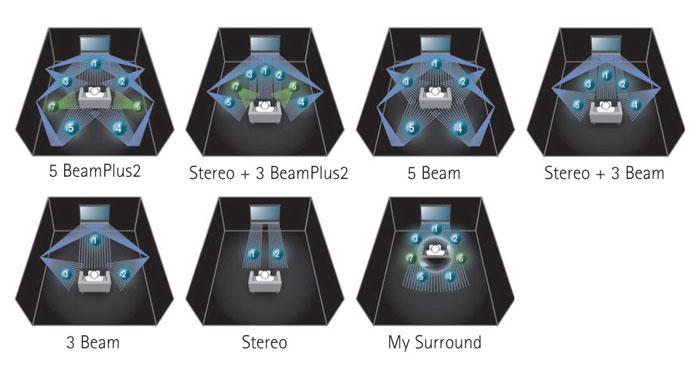

Versatile Listening Modes Including 7.1-Channel Output Capability

The YSP-2200 achieves true surround sound by directing sound beams off the walls to reach the listener from various angles. The main mode is 5 BeamPlus2 for 7-channel sources. In addition, there is a wide variety of other listening modes. You can select 3 BeamPlus2 + Stereo, 5 Beam, Stereo + 3 Beam, 3 Beam, Stereo and My Surround.



SPECS

General Output Power 132 W total power: 2W x 16 beam drivers with a 100W input power capacity subwoofer
Output Channel 7.1-channel
Power Consumption 55 W
Standby Power Consumption HDMI control off: 0.5 W; HDMI control on: 4 W
Beam Drivers 1-1/8" x 16 beam drivers
Subwoofer 4" x 2 bass-reflex (vertical/holizontal)
Dimensions (W x H x D) 37 1⁄8” x 2 3⁄4” – 3 1⁄8” (height adjustable) x 5 3⁄4” (Center unit), 17 1⁄8” x 5 3⁄8” x 13 3⁄4” (Horizontal) (Subwoofer)
Weight 9.5 lbs. (Center unit), 13.2 lbs. (Subwoofer)
Input / Output HDMI 3 in / 1 out
Digital Optical 2 in
Digital Coaxial 1 in
Analog Audio 1 in
Composite Video 1 out
HDMI HDMI Specification V.1.4a
Deep Color Yes
x.v.Color Yes
3D Repeat Yes
ARC Yes
CEC Yes
Auto Lip-Sync Yes
Sound Technology Surround Technology Digital Sound Projector™
CINEMA DSP Movie 3 (Sci-Fi, ADVENTURE, SPECTACLE)
CINEMA DSP Music 3 (MUSIC VIDEO, CONCERT HALL, JAZZ CLUB)
CINEMA DSP Entertainment 5 (SPORTS, TALK SHOW, DRAMA, GAME, 5ch STEREO)
Listening Mode 5BeamPlus2, 3BeamPLUS2+Stereo, 5 Beam, Stereo+3Beam, 3Beam, Stereo and My Surround
UniVolume Yes
Compressed Music Enhancer Yes
Audio Formats Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Digital Yes
Dolby Digital EX Yes
Dolby Pro Logic Yes
Dolby Pro Logic Ⅱ Yes
Dolby Pro Logic Ⅱx Yes
DTS-HD Master Audio Yes
DTS-HD High Resolution Yes
DTS Yes
DTS-Neo 6 Yes
DTS-ES Yes
Connectivity Yamaha Universal Dock for iPod Yes (With optional YDS-12)
Bluetooth Compatibility via Bluetooth® Wireless Audio Receiver Yes (With optional YBA-10)
Wireless iPod/iPhone Compatibility via Yamaha Wireless Dock System Yes (With optional YID-W10)
Other Features IntelliBeam Yes
On-Screen Display Languages English, German, French, Spanish, Italian, Russian, Dutch and Swedish
