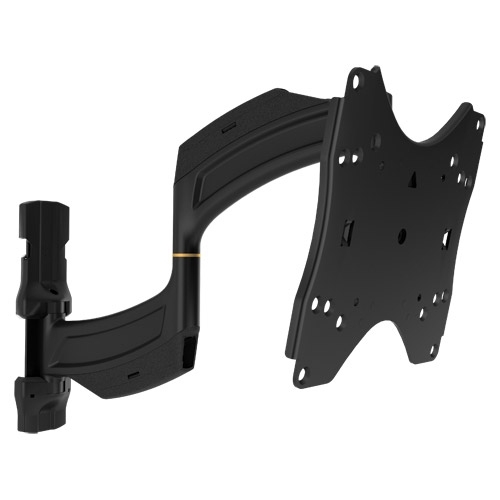

Medium THINSTALL™ Dual Swing Arm Wall Mount - 18" Extension
Features
- Ultra Low Profile Sleek design collapses to 1.5" (38 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 18" (457 mm) Full extension maximizes viewing potential.
- Centris™ low-profile tilt Provides up to 12° of effortless fingertip tilt toachieve optimal viewing angles.
- Integrated Cable Management Enclosed, tool-free cable covers make it easy to route power and signal cables, and connect to the wall for a seamless installation.
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
Specifications
| Certifications: |
UL Listed |
| Color: |
Black |
| Manual Height Adjustment: |
1" (25mm) |
| Maximum Extension: |
18.0" (456 mm) |
| Maximum Screen Thickness: |
5" (127mm) |
| Minimum Depth: |
1.5" (38 mm) |
| Mounting Pattern Compatibility (Universal Versions): |
100 x 100, 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200 and 400 x 400mm |
| Orientation: |
Landscape, Portrait |
| Overall Dimensions (H x W x D): |
14" x 13" x 1.5" (356 x 330 x 38 mm) |
| Pivot (numerical value): |
±90° (depending on screen width) |
| Post-Installation Leveling (Roll): |
Yes |
| Shipping Weight: |
13.00 lbs |
| Solution Type: |
Universal |
| Tilt: |
+ 0° , - 12° |
| Typical Screen Sizes: |
26 - 47" |
| Wall Stud Compatibility (inches): |
Single Stud |
| Weight Capacity: |
75 lbs (34 kg) |
