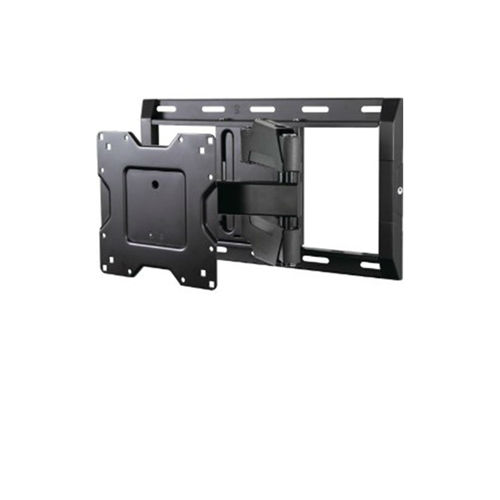

The OC120FM is ideal for consumers looking for a low-profile and easy-to-use large full motion mount
Benefits
- Tilt forward or back to reduce glare or for overhead installations
- Pan display left or right to view from multiple rooms or seating areas
- Pull TV forward when mounted in a recessed space
- Included adapters fit a wide range of VESA patterns
- Lift n' Lock™ feature offers easy, three step installation
- Cable management channels guide wires from TV to wall for a clean install
- +/-3° post installation leveling
- 2.9" (7.4 cm) of lateral adjustment makes TV centering possible
- Open frame provides ample room for power and A/V cutouts behind TV
- Wall plate and arm design complements TV whether extended or nested to the wall
- Complete hardware kit included
Specifications
- Fits most: 43–70" TVs
- Supports up to: 120 lbs (54.4 kg)
- Tilt: +15° to -1°
- Mounting profile: 3.8" (9.7 cm)*
- Maximum extension: 18.8" (47.8 cm)*
- VESA compliance: 200x200 to 600x400
- Mounting: Double-stud or solid wall
- Warranty: 5 years
- Color: Black
 - *adapter adds .2" (0.6 cm
