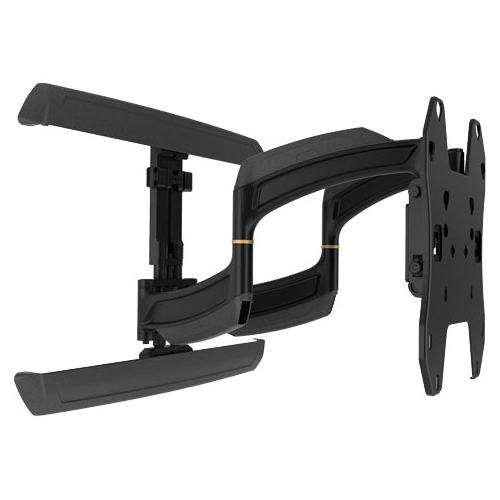

Medium THINSTALL™ Dual Swing Arm Wall Mount - 18" Extension
A lightweight, low-profile full-motion wall mount for TVs 26-52”. Easily installs with one person by mounting the top rail and sliding on the assembly.
Features
- Ultra Low Profile Sleek design collapses to 1.3” (33 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 18” (457 mm) Full extension maximizes viewing potential.
- Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles.
- Centerless™ Lateral Shift Post-installation lateral shift allows up to 16”(406 mm) of adjustment for limitless centering capability.
- Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation.
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
Specifications
| Certifications: |
UL Listed |
| Color: |
Black |
| Lateral Shift: |
16" (406.4mm) |
| Manual Height Adjustment: |
1 |
| Maximum Extension: |
18.2" (462.3mm) |
| Maximum Screen Thickness: |
5" (127mm) |
| Minimum Depth: |
1.3" (33.mm) |
| Mounting Pattern Compatibility (Universal Versions): |
100 x 100mm - 600 x 400mm |
| Orientation: |
Landscape |
| Overall Dimensions (H x W x D): |
17.2" x 22.6" x 1.3" (437 x 574 x 33mm) |
| Pivot (numerical value): |
±90° (depending on screen width) |
| Post-Installation Leveling (Roll): |
Yes |
| Solution Type: |
Universal |
| Tilt: |
+ ° , - 15° |
| Typical Screen Sizes: |
26 - 52" |
| Wall Stud Compatibility (inches): |
16 |
| Weight Capacity: |
75 lbs (34.kg) |
