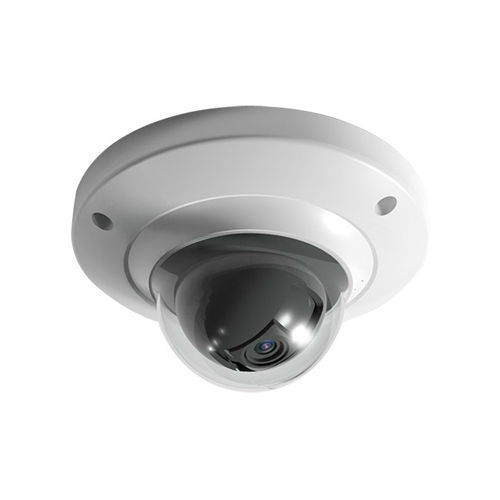

1.3 MegaPixel Full HD Vandalproof Mini Dome IP Camera
1.3 Megapixel IP mini Dome Camera works seemlessly with IC Realtime NVRs, Hybrid DVRs and Management Software.
- 1/3" 1.3MegaPixel Aptina CMOS image sensor |
- High-performance TI DaVinci series DSP |
- H.264E video compression and JPEG image capture |
- 30fps @ 720P resolution |
- Dual encoding streams supported |
- DC12V power supply, POE |
- Built-in web server, NVR, ICRSS & CMS |
Model |
ICIP-D1300 |
General |
Processor |
TI DaVinci Series DSP |
Operating System |
Embedded LINUX |
Resource |
Simultaneous remote monitoring, local recording and remote control |
User Interface |
WEB, CMS(DSS/ PSS), ICRSS, NVR |
Camera |
Image Sensor |
1/3 1.3 Megapixel SONY progressive scan Exmor CMOS |
Effective Pixels |
1920 (H)x1080(V) |
Electronic Shutter |
Auto/Manual, 1/60~1/10000s |
Mini. Illumination |
0.1LUX/F1.2(Color), 0.05LUX/F1.2(B/W) |
Signal Noise Ratio |
>50dB |
Gain Control |
Auto/Manual |
White Balance |
Auto/Manual |
Day/Night |
Electrical Day/Night |
Lens Mount080(V) |
M12 |
Lens |
3.6mm |
Video |
Video Compression |
H.264E/MJPEG/JPEG |
Image Resolution |
1.3M(1280x960) / 720P(1280x720) / D1(704x576/704x480) |
Encoding Speed |
Main Stream:15fps @ 1.3M(1280x960) |
|
Extra Stream: D1/CIF (1~30fps) |
Bit Rate |
128K~8192Kbps |
Snapshot |
Fastest 1fps JPEG capture |
Video Format |
NTSC |
Network |
Ethernet |
RJ-45 (10/100Base-T) |
Network Functions |
HTTP,TCP/IP,ARP,IGMP,ICMP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP, DNS,DDNS,PPPOE,UPNP,NTP,Bonjour,SNMP |
Remote Operation |
Monitor, Playback, System setting, File download, Log information, Maintenance & Upgrade |
Environmental |
Power Supply |
DC12V, PoE |
Power Consumption |
Max 1.5W |
Operating Environment |
-14°F~140°F / -25°C~+60°C, 10%~90% |
Dimensions |
2.13" x Φ4.33" - 54mm x Φ110mm |
Weight |
0.5lb / 0.25kg |
