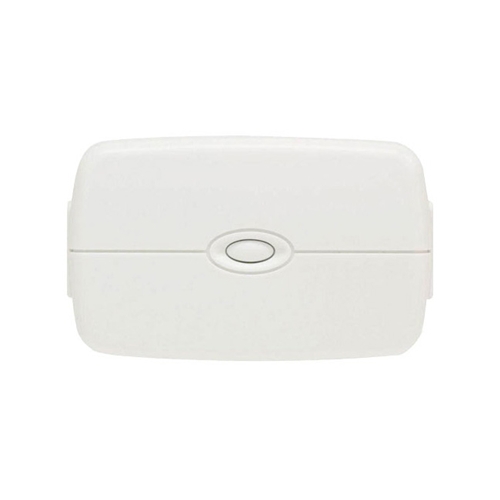

Jasco Z-Wave Plug-In Appliance Module

No Wiring Required

The Jasco Z-Wave Plug-In Appliance Module provides wireless control for any plug-in fluorescent lamp or small appliance, such as a coffee pot. The module simply plugs into a standard power outlet, and your lamp or appliance plugs into the module. Now the connected device can be turned on or off and dimmed or brightened with any Z-Wave controller!

• Control small appliances, standard incandescent lighting, and fluorescent lighting
• Module provides one Z-Wave AC outlet and one standard AC outlet
• Horizontal design keeps your other outlets unblocked

The appliance module includes two outlets: a Z-Wave enabled outlet for the lamp or appliance you want to control and a regular pass-through AC outlet for other electrical devices. The module also features a horizontal design to avoid blocking other nearby receptacle outlets.

Note: The device plugged into the Z-Wave controlled outlet on this module must not exceed 600 watts (Incandescent); 1800W (15A) Resistive or 1/2 HP Motor. Total load capacity for both outlets is 1800W (15A) Resistive. For indoor use only.

Specifications

• Power: 120VAC, 60Hz
• Signal Frequency: 908.42 MHz
• Maximum Load:

• For both outlets: 15 Amps, 1800W Resistive
• For the Z-Wave controlled outlet: 600W Incandescent, 1/2 HP Motor or 1800W Resistive

• Range: Up to 100 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module. (Obstacles reduce range by 25-30%.)
• Operating Temperature Range: 32 to 104° F (0 to 40° C)
• Approvals: FCC
