Universal Ultra Slim Articulating Wall Mount
For 42" to 65" Ultra-thin Flat Panel Displays*

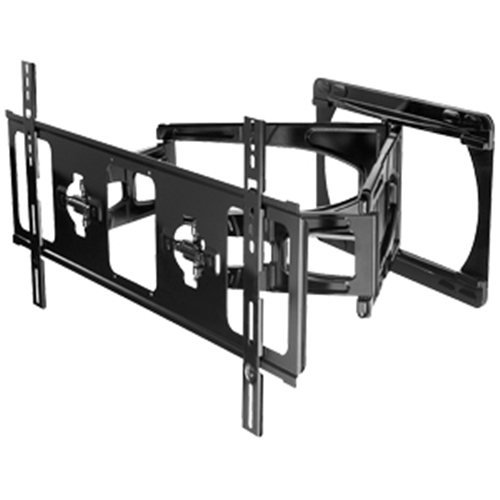

Take any viewing experience from ordinary to extraordinary with the Peerless-AV SUA765PU Universal Ultra Slim Articulating Wall Mount. It’s the world’s thinnest wall arm mount designed exclusively for ultra thin displays. Only the SUA765PU mount holds a display this close to the wall, yet extends out to provide virtually any viewing angle. Dual-arm construction means it is robust enough to hold larger displays firmly in any position, and it comes with the ease-of-installation and intuitive adjustments that are simply Peerless-AV.
- Dual-arm design enhances the stability of the Full-Motion Plus Wall Mount
- One-Touch Tilt™, 15°/-5°, allows for ideal viewing angles without the use of tools
- Up to ±72.5° of side-to-side swivel
- ±1° of roll offers a simple way to horizontally level the display
- Dual stud wall plate allows for perfect mount placement
- Universal mounting hole pattern, fits up to 854 x 439mm (33.60" x 17.27") and VESA® 100 x 100, 200 x 100, 200 x 200, 400 x 200, 400 x 400 and 800 x 400mm compliant
- Wall Mount retracts to only 1.24" (32mm) and extends up to 23.25" (590.55mm) from the wall
| Minimum to Maximum Screen Size: |
42" to 65" |
| VESA Pattern: |
100, 200 X 100, 200, 400 X 200, 400, 800 |
| Mounting Pattern: |
854 x 439mm (33.60 x 17.27") |
| Weight Capacity: |
100lb (45.0kg) |
| Color: |
Black |
| Finish: |
High Gloss |
| Security Features: |
Non-Security Hardware |
| Tilt: |
+15 / -5 |
| Swivel Yaw: |
+72.5 / -72.5 |
| Roll: |
+1 / -1 |
| Distance from Wall: |
1.24 - 23.25" (32 - 591mm) |
| Product Dimensions: |
38.17 x 19.00 x 1.24 - 28.16" (969 x 483 x 32 - 591mm) |
| Ship Dimensions: |
16.25 x 1.875 x 44.25" (412.8 x 47.6 x 1,124.0mm) |
| Shipping Weight: |
31lb (13.99Kg) |
