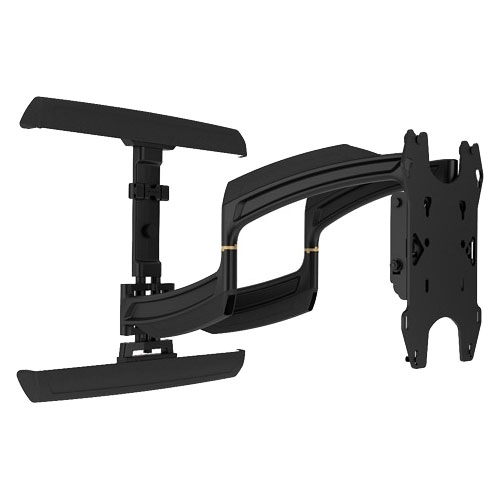

Medium THINSTALL™ Dual Swing Arm Wall Mount - 25" Extension
A lightweight, low-profile full-motion wall mount for TVs 30-52”. Easily installs with one person by mounting the top rail and sliding on the assembly.
Features
- Ultra Low Profile Sleek design collapses to 1.3” (33 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 25” (635 mm) Full extension maximizes viewing potential.
- Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles.
- Centerless™ Lateral Shift Post-installation lateral shift allows up to 16” (406 mm) of adjustment for limitless centering capability.
- Integrated Cable Management Enclosed, tool-free cable covers and a wide open wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation.
General Information
| | Manufacturer: | Chief Manufacturing | | Manufacturer Part Number: | TS325TU | | Manufacturer Website Address: | http://www.chiefmfg.com | | Brand Name: | Chief | | Product Line: | Thinstall | | Product Model: | TS325TU | | Product Name: | Thinstall TS325TU Medium Dual Swing Arm Wall Mount | | Marketing Information: | A lightweight, low-profile full-motion wall mount for TVs 30-52". Easily installs with one person by mounting the top rail and sliding on the assembly. | | Product Type: | Mounting Arm |
Product Information
| | Device Supported: | Flat Panel Display | | Number of Displays Supported: | 1 | | Maximum Load Capacity: | 75 lb | | Maximum Screen Size Supported: | 52" |
Physical Characteristics
| | Color: | Black | | VESA Mount Standard: | | | Height: | 17.2" | | Width: | 29.5" | | Depth: | 1.3" | | Weight (Approximate): | 31 lb |
Miscellaneous
| | Package Contents: | - 1 x Main Assembly
- 1 x Wall Rail
- 1 x Right Upright
- 1 x Left Upright
- 1 x Top Interface Support
- 1 x Bottom Interface Support
- 2 x Wall Rail Cover
- 1 x Rag Screw Cover
- 1 x Bumper
- 1 x Latch Spacer
- 2 x Long Adhesive
- 4 x Short Adhesive
- Mounting Hardware
| | Compatibility: | - LCD Screen
- LED Screen
- Plasma Screen
|
Warranty
| | Limited Warranty: | 10 Year |
