WYRESTORM EXPSW0501 5X1 HDMI SWITCHER WITH REMOTE

Other products by	Wyrestorm
	(Website Link)

View Accessories

Variants:

Item #:

EXPSW0501

MSRP:

$90.00

Description
Description

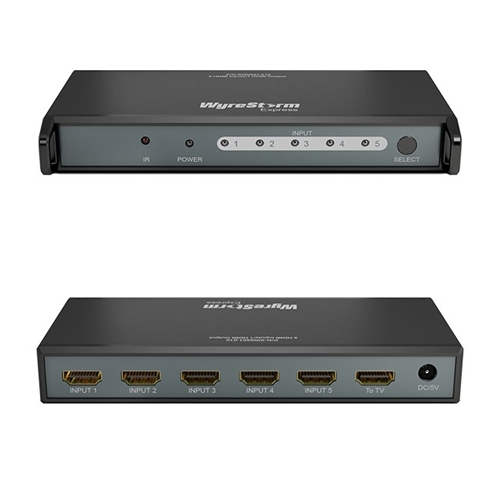

WyreStorm Express™ 5x1 HDMI Switcher with Remote

The WyreStorm Express EXP-SW-0501 is an HDMI Switcher that enables 5 HDMI audio or video sources to be simultaneously distributed to a single HDMI display output with control via front panel or IR/remote handset and offers full HD support for audio and all video formats up to 1080p / 24Hz, including full 3D compatibility.

Whatever the project, if switching between multiple HDMI inputs to a single HDMI output is required, the WyreStorm EXP-SW-0501 represents a reliable and cost-effective means of quickly and easily achieving your goal.

Running out of HDMI ports on your TV?
Connect up to 5 HDMI devices to a single input on your TV
Select any of the 5 input devices by remote control (supplied)

Overview

The WyreStorm Express EXP-SW-0501 is an HDMI Switcher that enables 5 HDMI audio or video sources to be simultaneously distributed to a single HDMI display output with control via front panel or IR/remote handset. The EXP-SW-0501 supports High Definition audio and all video formats up to 1080p / 24Hz with full 3D support.

Whether running out of HDMI ports on a TV or creating a small AV distribution, connect up to 5 HDMI devices to a single input on a TV or AVR, with selection of any of the connected input devices by front panel of with the supplied remote control.

Whatever the application, if switching between multiple HDMI inputs to a single HDMI output is required, the WyreStorm EXP-SW0501 represents a reliable and cost-effective means of quickly and easily achieving your goal.

WyreStorm Express has been developed as a complete line of plug and play solutions for High Definition connectivity in the home with 3D compatible devices.

The Express range includes simple, inexpensive yet reliable HD switching, distribution and control; ideal for integrating satellite & cable boxes, Blu-Ray and DVD, the latest gaming machines and digital media content stored on HDD with LCD/LED/Plasma displays or digital projectors.

Features

Simple plug-and-play connection - no set up / drivers / software required
Allows up to 5 HDMI audio/video devices to be switched to one HDMI display device, such as TV, AVR, digital signage panel, HDTV or digital projector
Automatically negotiates EDID signals from display for seamless communication between devices
Supports HD audio
Supports high definition HDMI resolutions, including 1080p, 1080i, 720p at 24Hz and other standard video formats
Each port supports both HDMI and DVI inputs
Supports UXVGA resolutions up to 1920x1200
Dual switching control via front panel and IR - infrared handset supplied for remote control switching
Fully HDCP compliant
HDMI 1.3bv
Full 3D support – frame packing/sequential – Blu-Ray and stereoscopic – satellite/cable broadcasts)
Signal transmission rate 6.75Gbps
1 Year Warranty

In the Box

1 x EXP-SW-0501 WyreStorm Express 5 to 1 HDMI Switcher

1 x EXP-SW-0501 power supply

Printed Quickstart installation guide

Infrared (HEX codes) for use with Infrared learning Remote controls are available in download section of this product page

Specifications

Dimensions (WxHxD): 162mm / 6.4" x 19mm / 0.75" x 69mm / 2.7"

Weight (Kg): 0.95Kg / 2.1lb

Operating Temperature Range: -5 to +35°C (-41 to +95 °F)

Operating Humidity Range: 5 to 90 % RH (no condensation)

Video Amplifier Bandwidth: 6.75Gbps

Input Video Signal: 0.5-1.0 volts p-p, Resistance: 75Q

Input DDC Signal: 5 volts p-p (TTL)

Maximum Single Link Range: 1080p 24bit colour depth

Transmission distance: HDMI transmission 15m / 49ft max. (24 AWG HDMI Cable), 10m / 33ft (28 AWG HDMI Cable) - if further distances are required, please use a WyreStorm HDMI repeater or consider a WyreStorm HDMI extender device

Video Format Supported:

DTV/HDTV: 1080p/1080i/720p/576p/480p/576i/480i

Output Video:

HDMI 1.3b version with full 3D - frame packing/sequential (Blu-Ray). Interlaced Stereoscopic (Satellite/cable)

Audio Format Supported: DTS-HD, Dolby HD

Power Supply: 5VDC - from mains. Max Power: 1.0w

Power Consumption: 4 watts (max.)

BTU Rating (British Thermal Unit): N/A

Rack Space Required: N/A

Downloads

application/vnd.openxmlformats-officedocument.wordprocessingml.document icon

HEX codes

Compatible Control Systems
Some 3rd party integration protocols use open source coding and are not always a part of an official integration program
