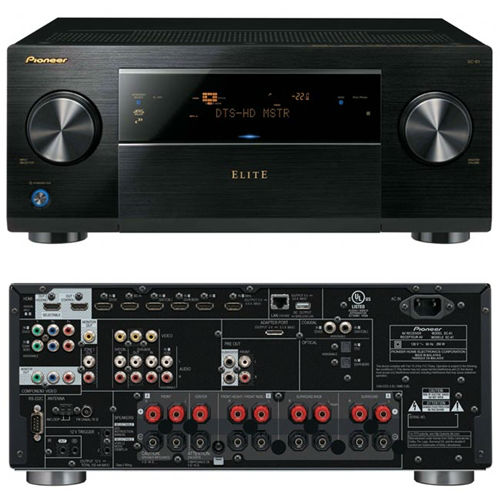

ELITE SC-81 7.2-Channel
Energy Star Certified 7.2-Channel ELITE® AV Receiver Featuring Class D3 (Direct Energy HD) Amplifier, Ultra HD (4K/60p) Upscaling/Pass-through, DSD Playback via Network, Subwoofer EQ, Dual Subwoofer Preout, Built-in AVNavigator, and Advanced Direct Construction
SPEC SHEET
Amplification
›› Channels: 7
›› Amplification Type: Class D3 (Direct Energy HD)
›› 560 W Multi ch Simultaneous Drive (8 ohms, 1 kHz, THD 1.0 %)
›› 180 W/ch (4 ohms, 1 kHz, THD 1.0 %, 2 ch Driven)
›› 150 W/ch (6 ohms, 1 kHz, THD 1.0 %, 2 ch Driven FTC)
›› 120 W/ch (8 ohms, 1 kHz, THD 0.08 %, 2 ch Driven FTC)
Construction Design
›› Advanced Direct Construction
›› Rigid Trans-Stabilizer
›› Insulated Dual Chassis
Front Terminals
›› HDMI 1 In
›› USB® 1 in for iPod/iPhone, USB Drive
›› MCACC® Setup Mic In
›› Phones 1 Out
Rear Terminals
›› HDMI 6 in
(6 assignable, 1 for HDMI/MHL)
›› HDMI 2 out
(1 for MAIN, 1 for MAIN/HDZONE)
›› Ethernet 1 In
›› AV (Composite) 2 In/1 Out
›› Audio 1 In (assignable)
Zone Features
›› HDZONE for Audio and Video
›› ZONE 2 Audio, Volume, Balance and Tone
Product Specifications
›› Dimensions (W x H x D): 17-1/8 x
7-5/16 x 15-9/16 inches
›› Weight: 31.53 lbs.
